Home >> BMW >> 2008 >> M3 Convertible (E93) V8-4.0L (S65) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Application and ID

Automatic Transmission/Transaxle: Application and ID

23 00 ... Transmission designations

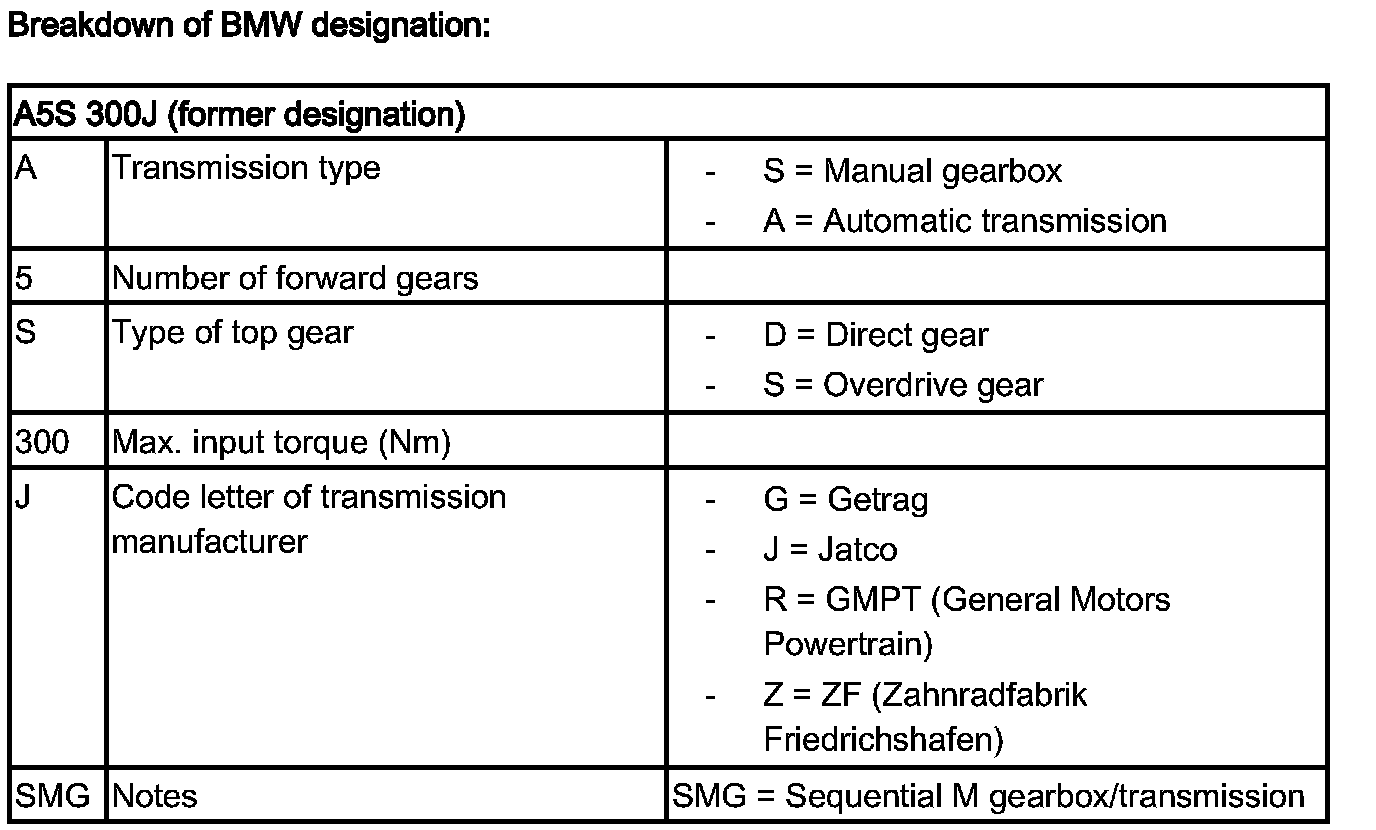

Breakdown of BMW designation:

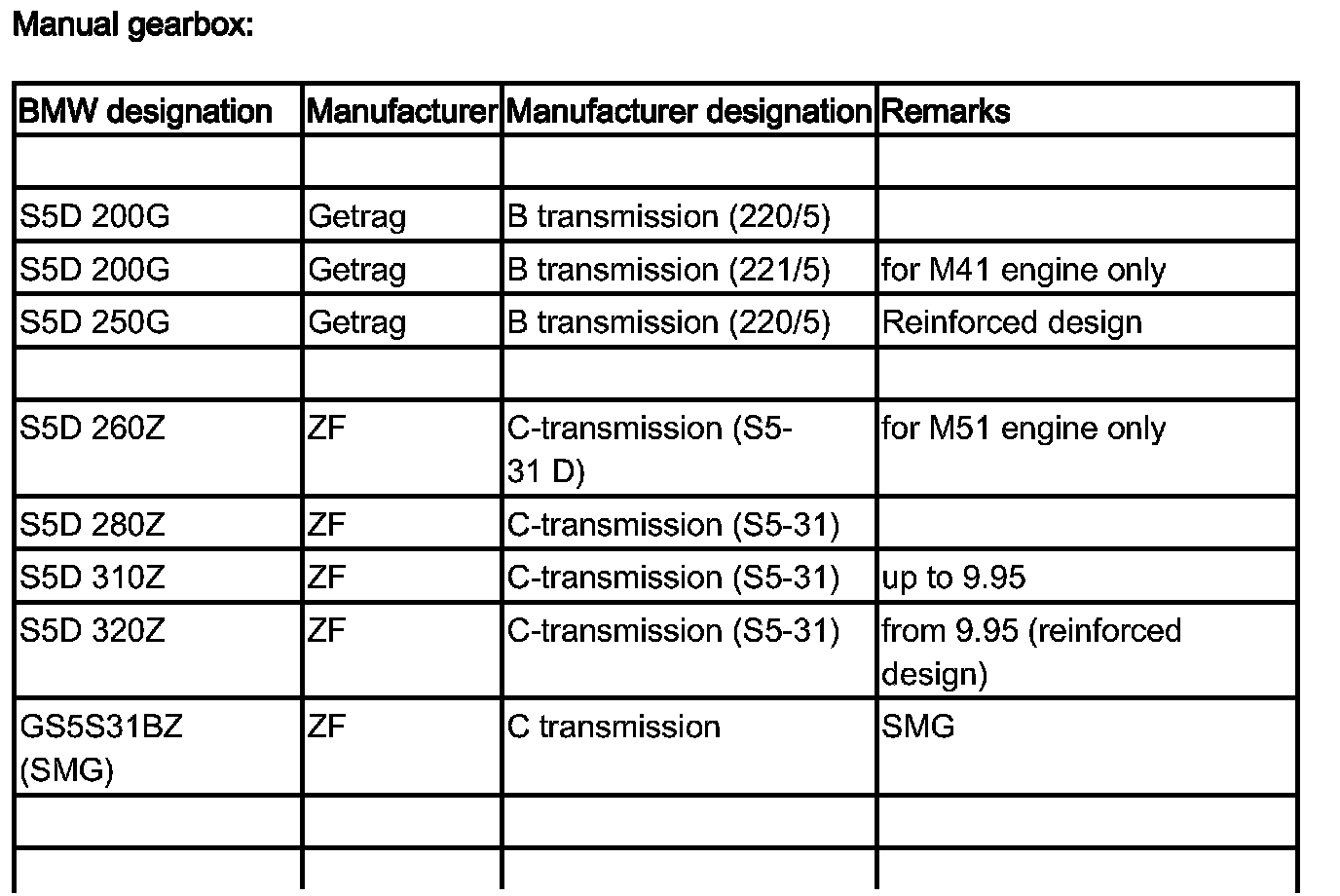

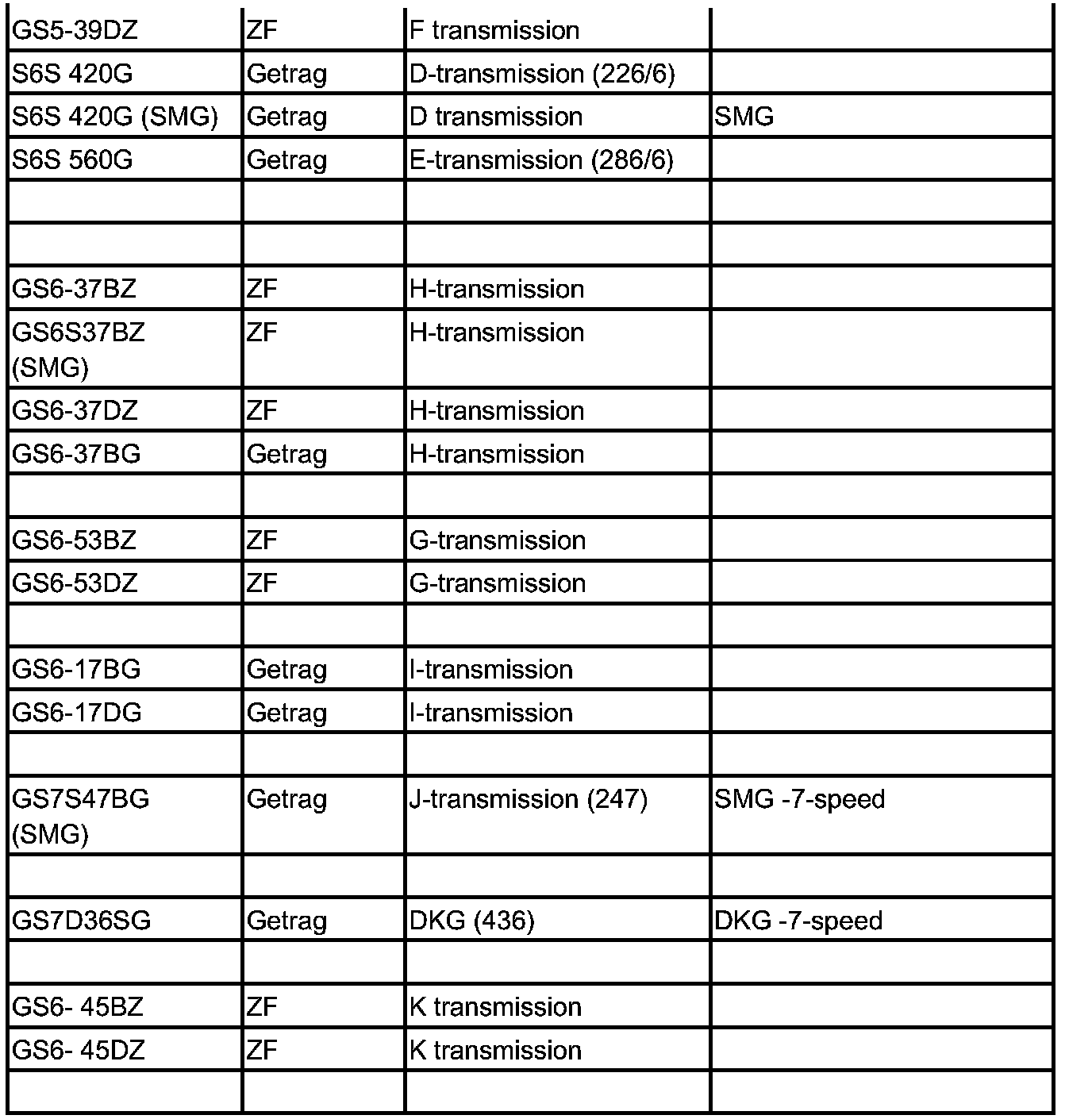

Manual gearbox:

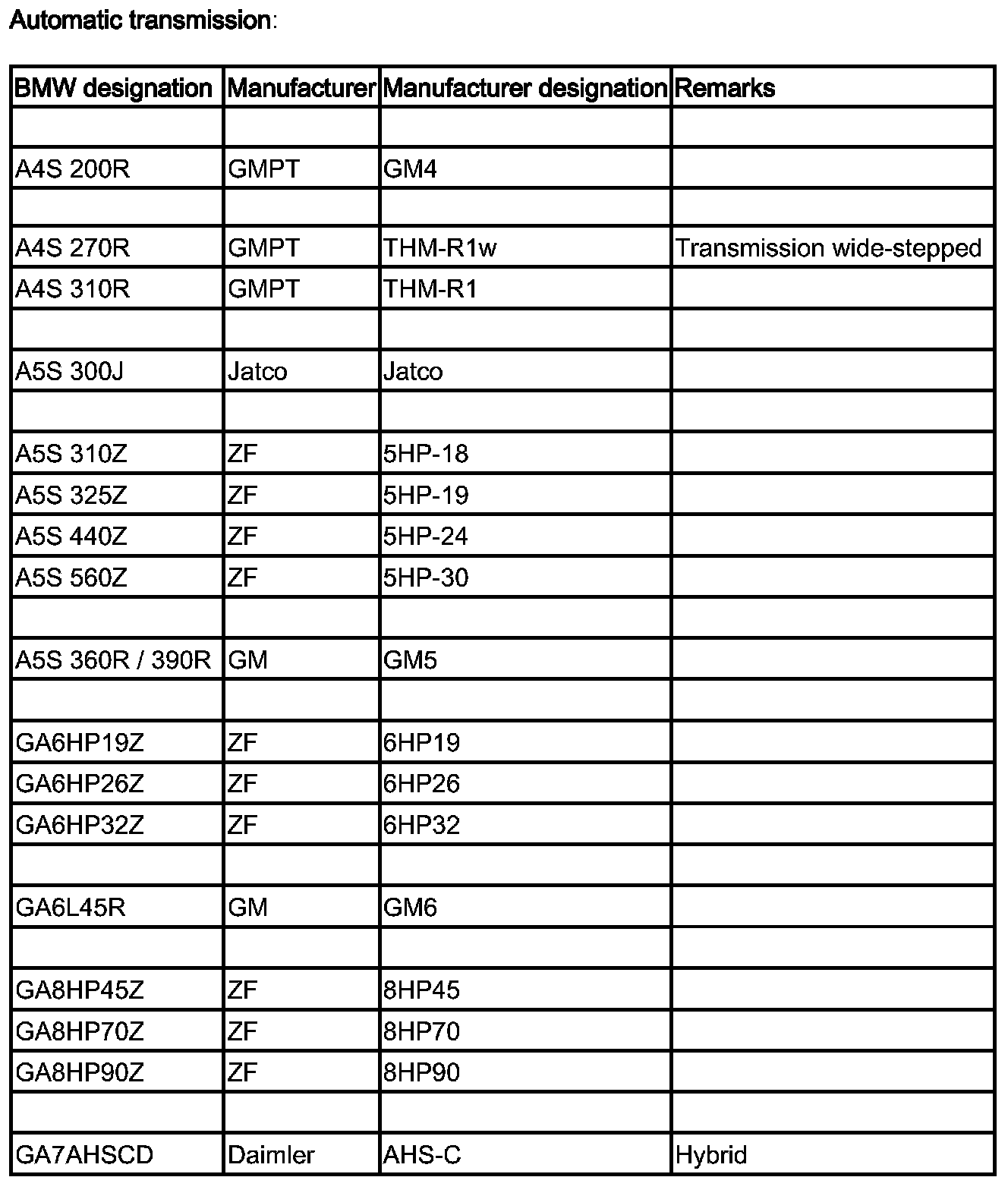

Automatic transmission:
