Cumulative Steering Angle Sensor




Vehicles equipped with 2nd generation Active steering have a cumulative steering angle sensor. The cumulative steering angle sensor is flange-mounted to the output end of the steering gear/box.

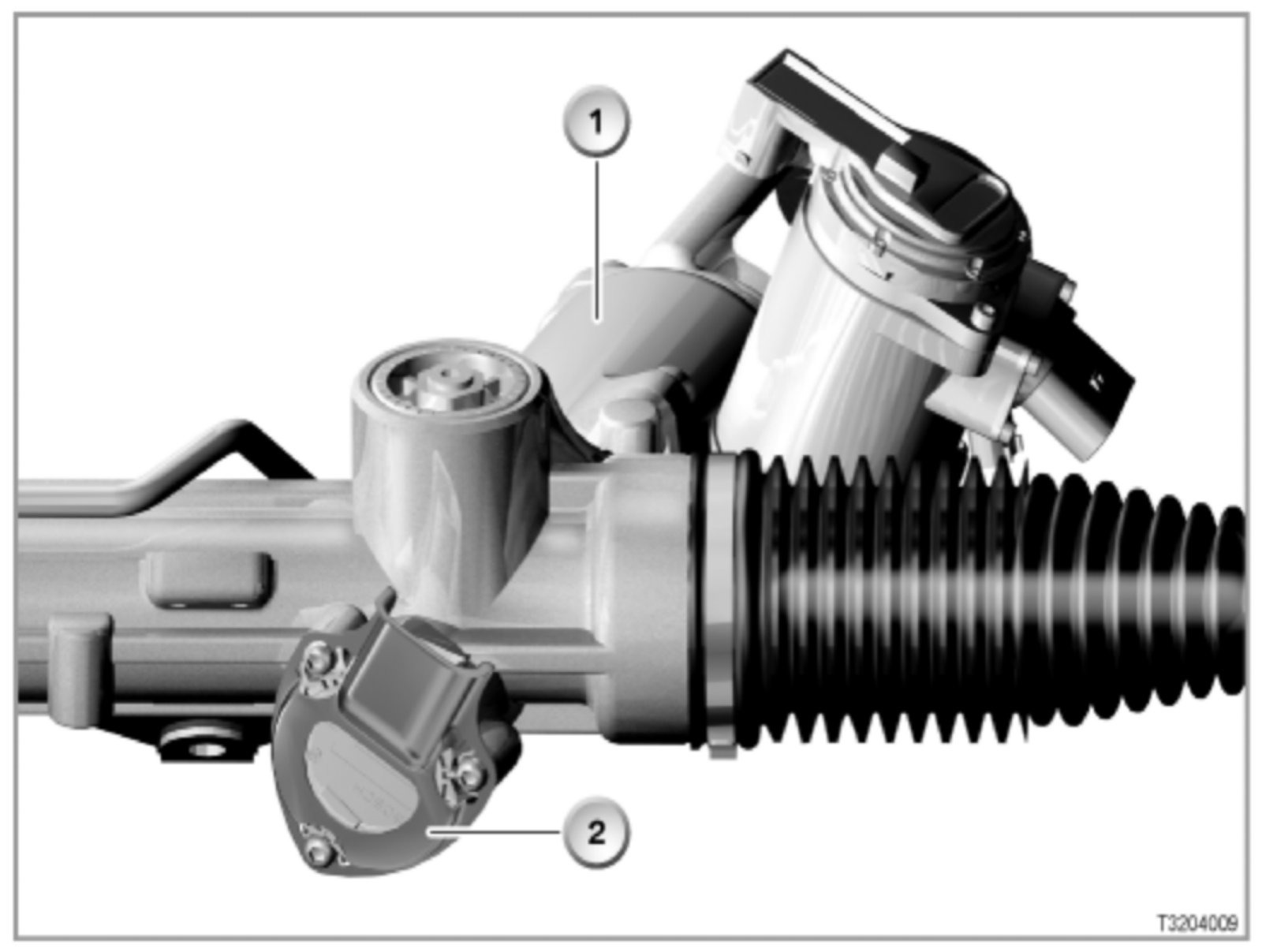

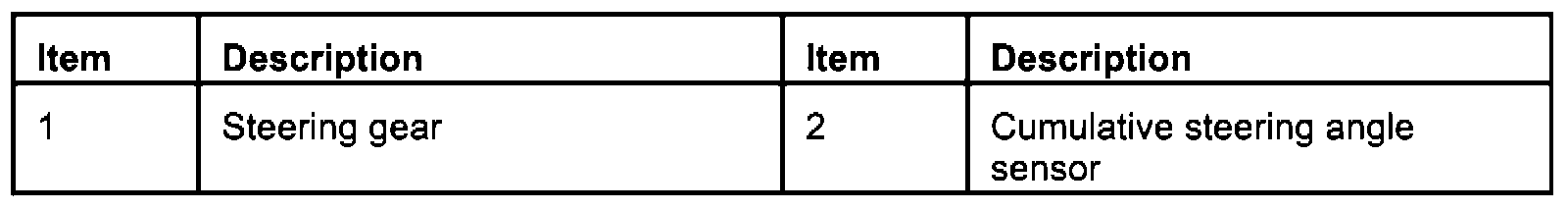

The illustration shows the BMW 3-Series
