Fuel Tank Vent: Service and Repair

13 90 500 - Replacing tank venting valve (S65)





Necessary preliminary tasks:
- Read out fault memory of DME control unit; if necessary, work through test schedules
- Switch off ignition
- Remove intake air manifold

Note:
The tank venting valve is fitted under the intake air manifold.





Unlock connector and remove.
Unlock hose on tank venting valve and disconnect.
Release clamp, detach hose.

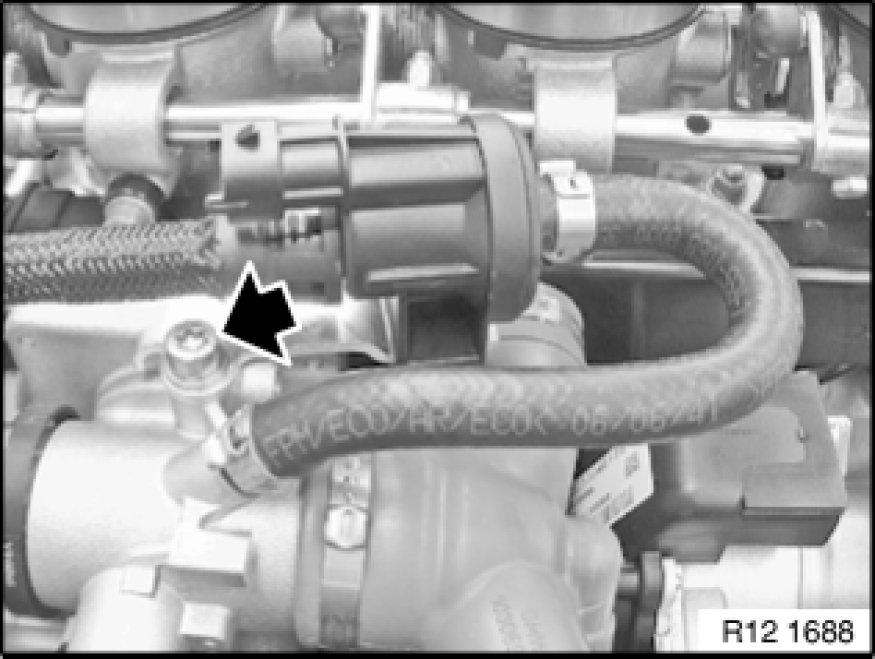

Release bolt on bracket.
Remove tank venting valve.






Note:
Now clear the fault memory.
