61 31 192 Replacing Button For Controller

61 31 192 Replacing Button For Controller (Until 09/2008)

Special tools required:







IMPORTANT:
Risk of damage.
Before dismantling the button it is imperative to note whether the controller is installed with a version before or after 09/2008.







NOTE: The number of buttons and shape of controller can vary depending on vehicle type.

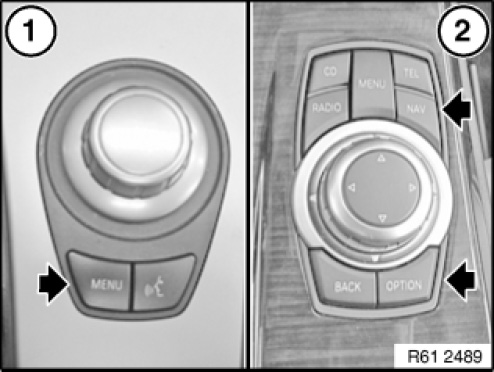

Before 09/2008: Controller (1) has buttons on bottom only.
After 09/2008: Controller (2) has buttons top and bottom.
Button may be removed from controller (1) only.

NOTE: These repair instructions describe the removal of the button from controller (1).

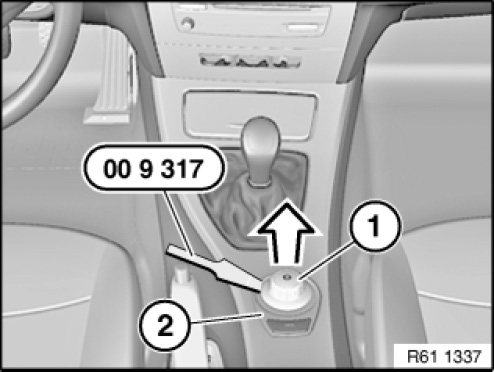

Partially fit special tool 00 9 317 as pictured.
Lever out button for controller (1) from controller (2) and remove towards top.







IMPORTANT:
Risk of damage.
Install button for controller only when controller is installed.







Installation note:

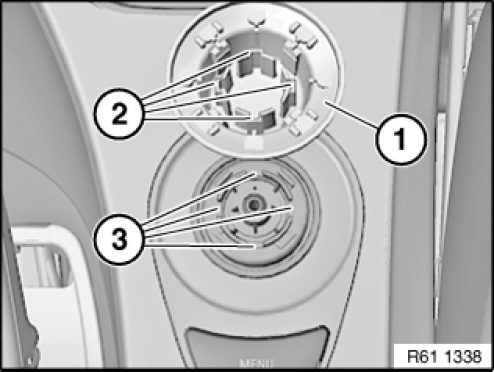

Fit button for controller (1) so that guides (2) are correctly seated in mounts (3).
