64 52 521 Replacing A/C Compressor

64 52 521 Replacing A/C System Compressor (S65)

Special tools required:







WARNING:
Scalding hazard.
Work on the cooling system may only be carried out when it has cooled down.







WARNING:
Risk of injury.
Refrigerant circuit is under high pressure.
Follow safety instructions for handling R 134a refrigerant.
Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for handling refrigerant oil.







IMPORTANT:
Risk of damage.
Restart engine only when air conditioning system has been correctly filled.
Read and comply with notes on replacing compressor.
Follow instructions for opening and replacing parts in refrigerant circuit.
If air conditioning system is opened for more than 24 hours:
Replace desiccant insert for A/C system.







Necessary preliminary tasks:
- Drain off air conditioning system
- Remove A/C compressor drive belt
- Drain coolant from radiator
- Remove coolant hose from radiator at bottom







Clamp off overflow hoses (1) and lay to one side.
Unfasten screws (2).
Raise coolant tank (3) and disconnect associated plug connection.
Place coolant tank (3) to one side.

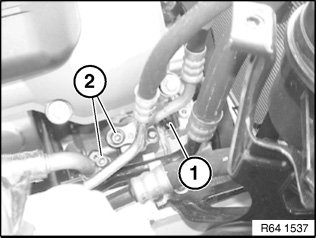

Disconnect plug connection (1).
Release screws (2) and remove refrigerant lines.
Tightening torque 64 52 1AZ.

Installation:
Replace sealing rings.

Use special tool 00 9 030 to mount sealing rings without damaging them.







IMPORTANT: Close openings or line to compressor with special tool 32 1 270 to avoid media leak and dirt contamination.

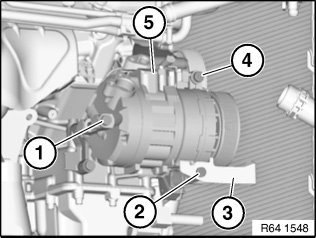

Release screws (1, 2) and remove holder (3).

IMPORTANT: Secure compressor (5) against falling off/down.

Release screw (4) and feed out compressor (5) towards top.







Installation:

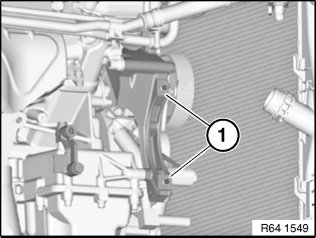

If necessary, replace damaged adapter sleeves (1).







After installation:
- Fill and vent cooling system
- Evacuate and fill A/C system
