Home
>>
BMW
>>
2008
>>
M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Convertible Top Control Module
>>

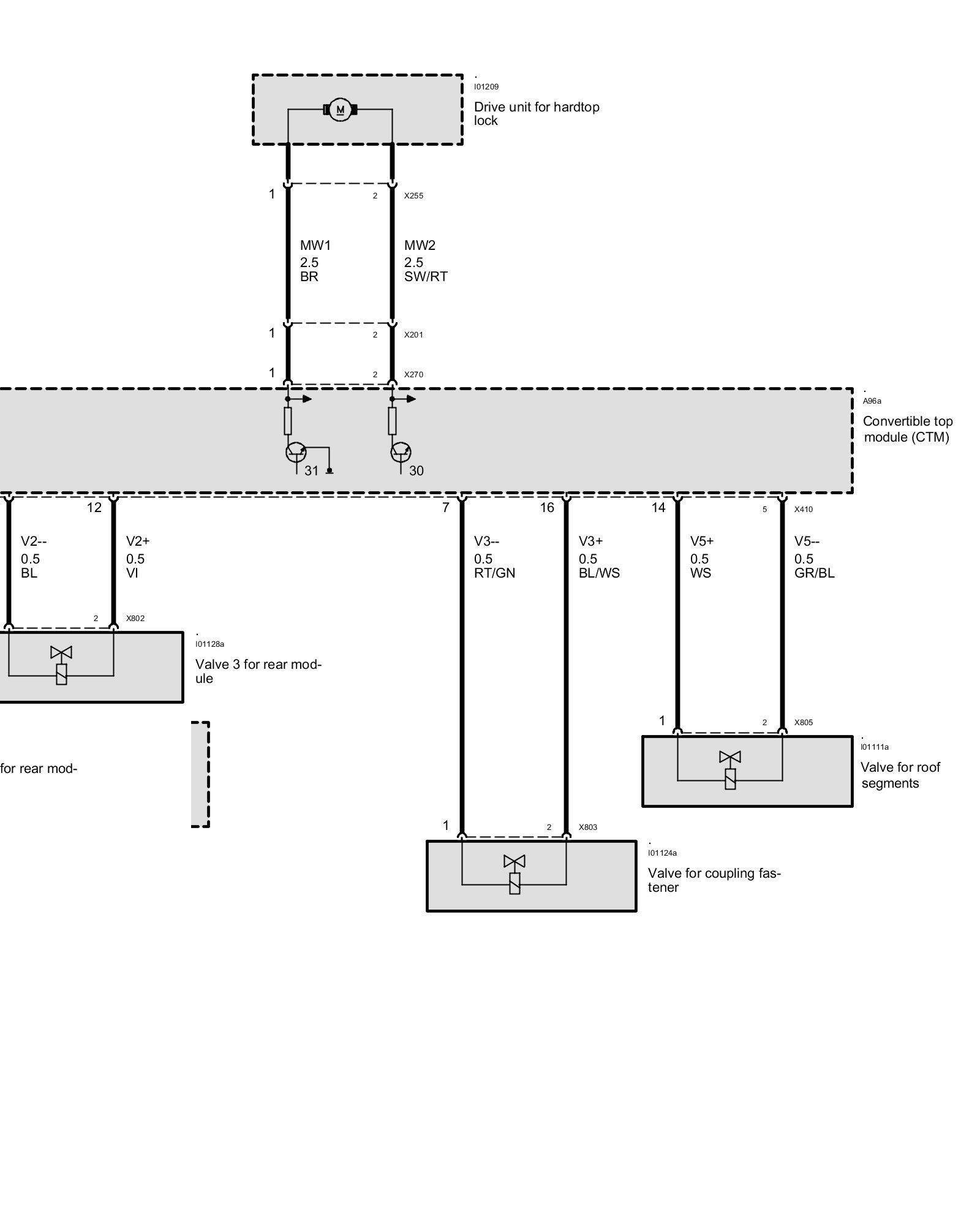

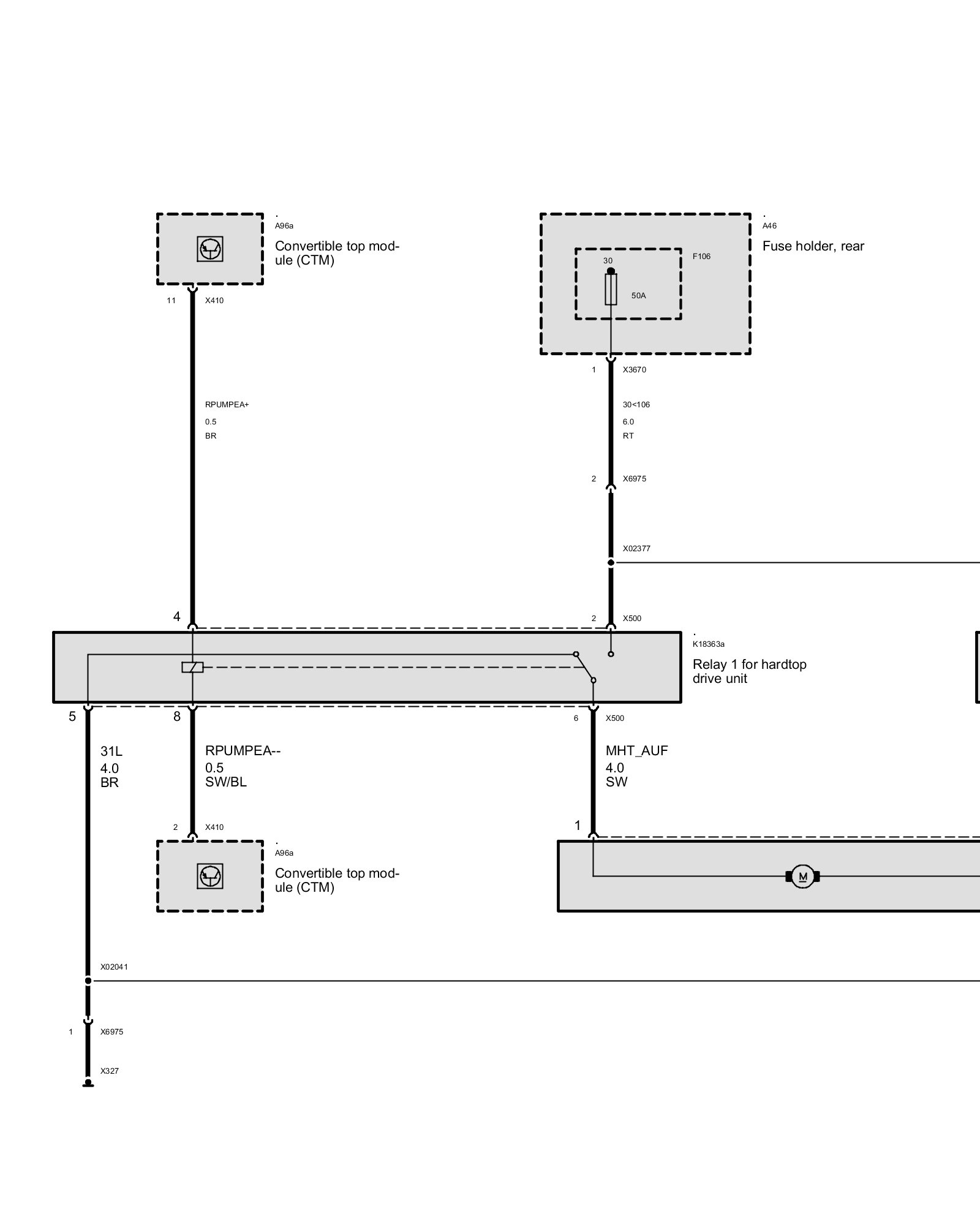

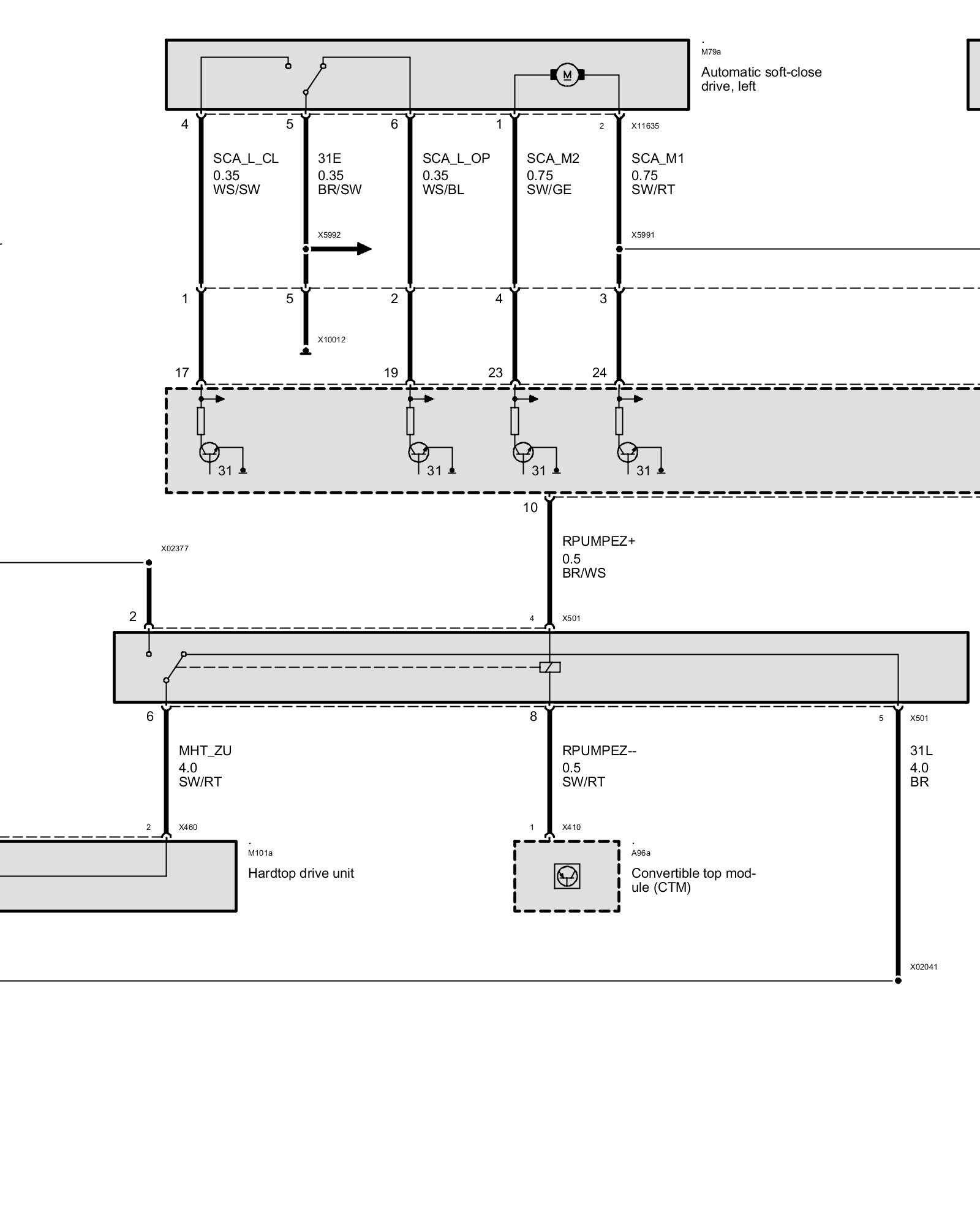

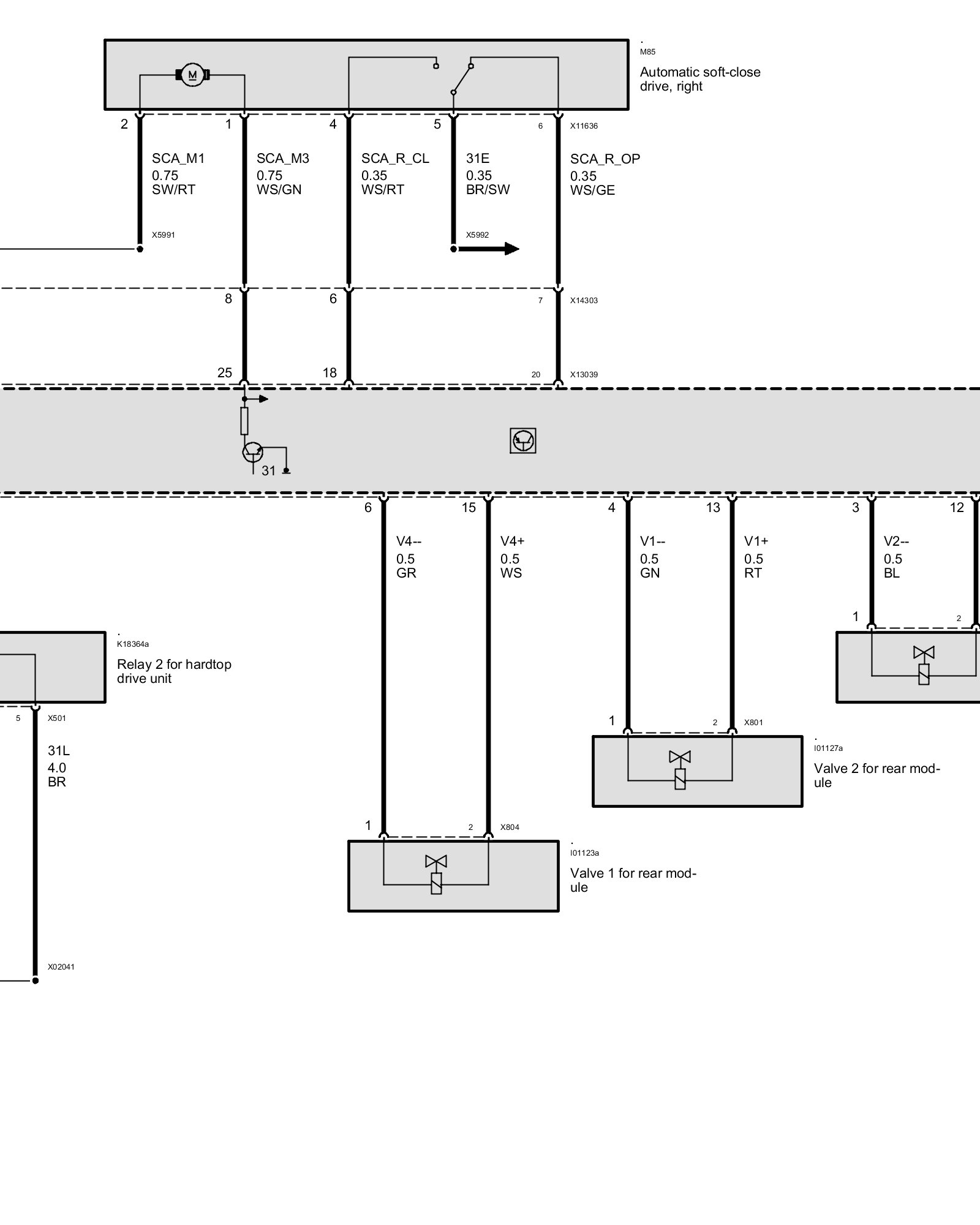

Outputs, Retractable Hardtop
Outputs, Retractable Hardtop
Outputs, Retractable Hardtop
