Removing and Installing/Replacing Backrest




52 24 010 - Removing and installing / replacing backrest





Necessary preliminary tasks:
- Remove backrest side section Removing and Installing/Replacing Left or Right Side Section on Rear Seat Backrest





Release backrest and fold down.

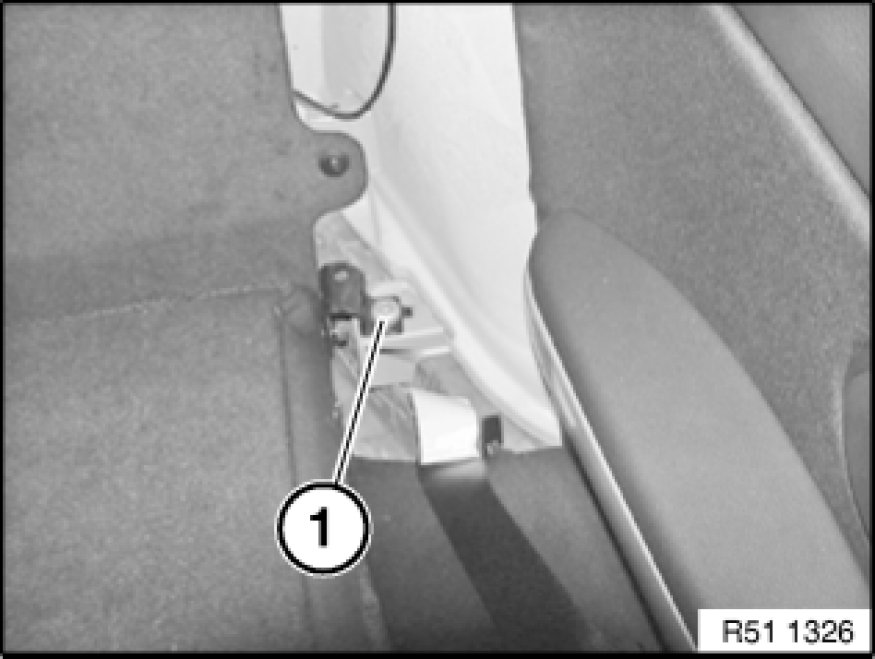

Release screws (1) on backrest.
Remove backrest.
