54 37 ... Installing guide plate for cowl panel baseplate (build date up to 07/2007)

54 37 ... - Installing guide plate for cowl panel baseplate (build date up to 07/2007)





Necessary preliminary tasks:
- Remove cowl panel trim Service and Repair

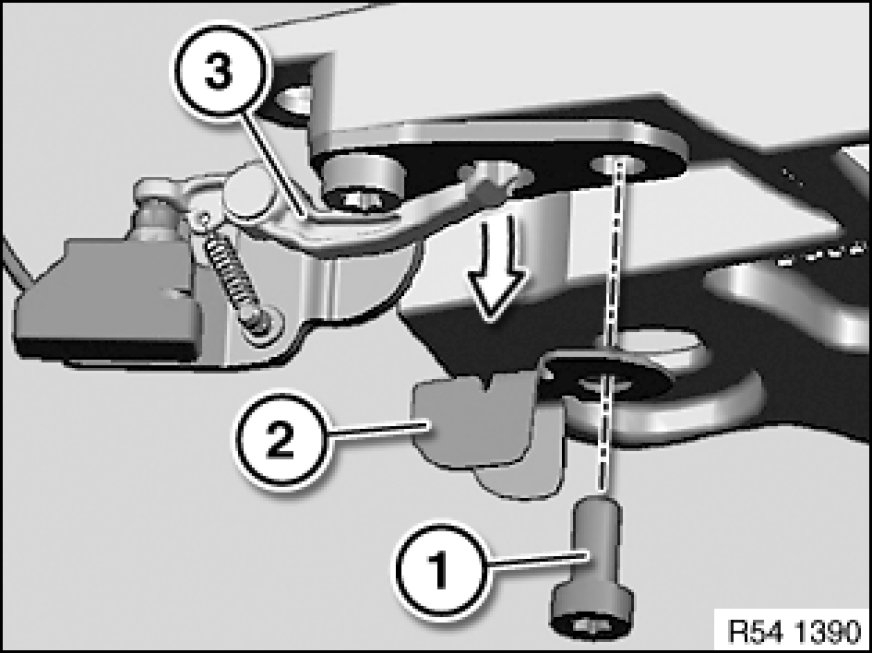

Release screw (1).





Pull back microswitch lever (3).

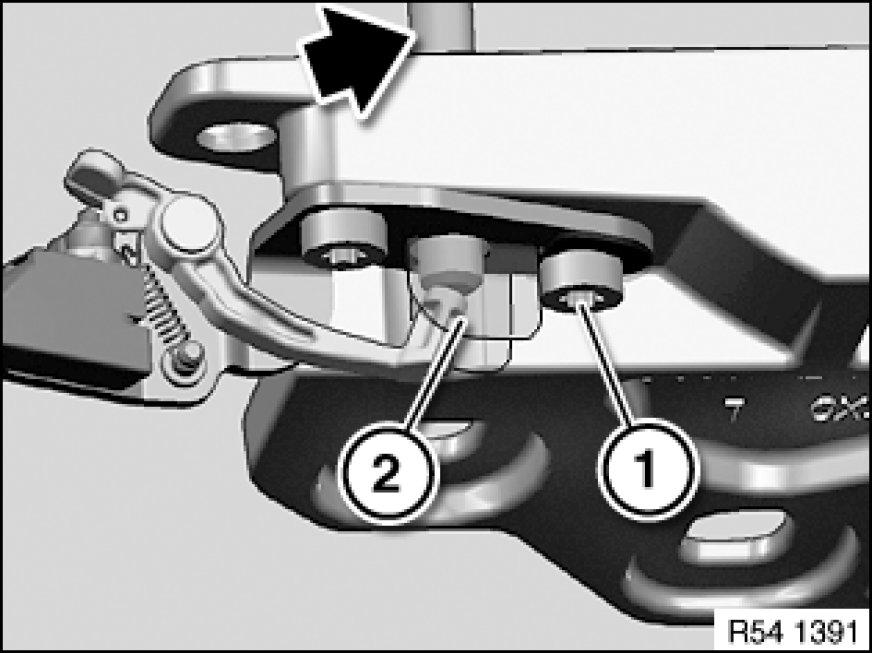

Mount guide plate (2) loose with screw (1).





Align guide plate (2) with 6.5 mm dia. dowel pin (or drill bit shank).

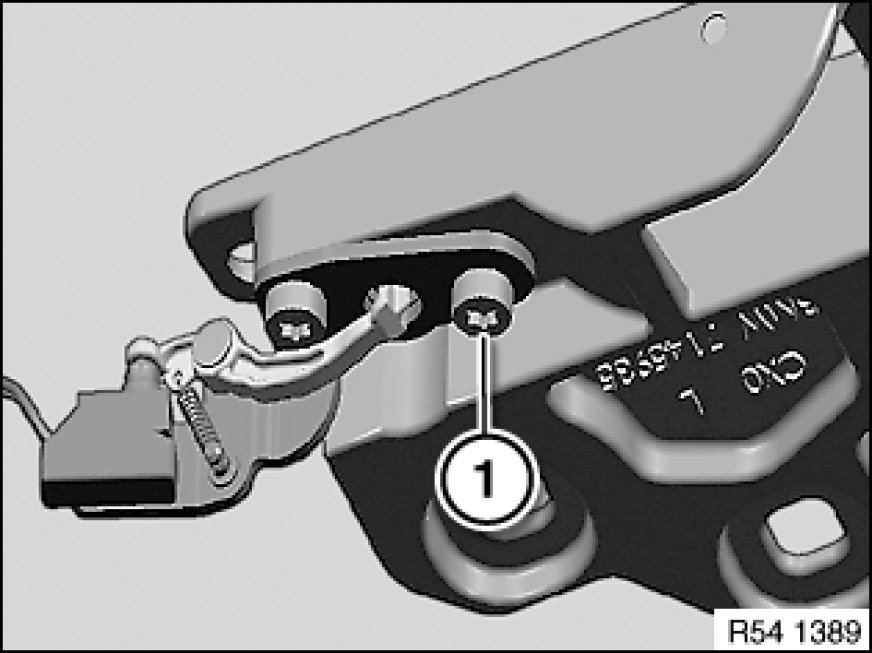

Tighten screw (1).
Tightening torque: 54 37 26AZ 54 37 Power Convertible Top.

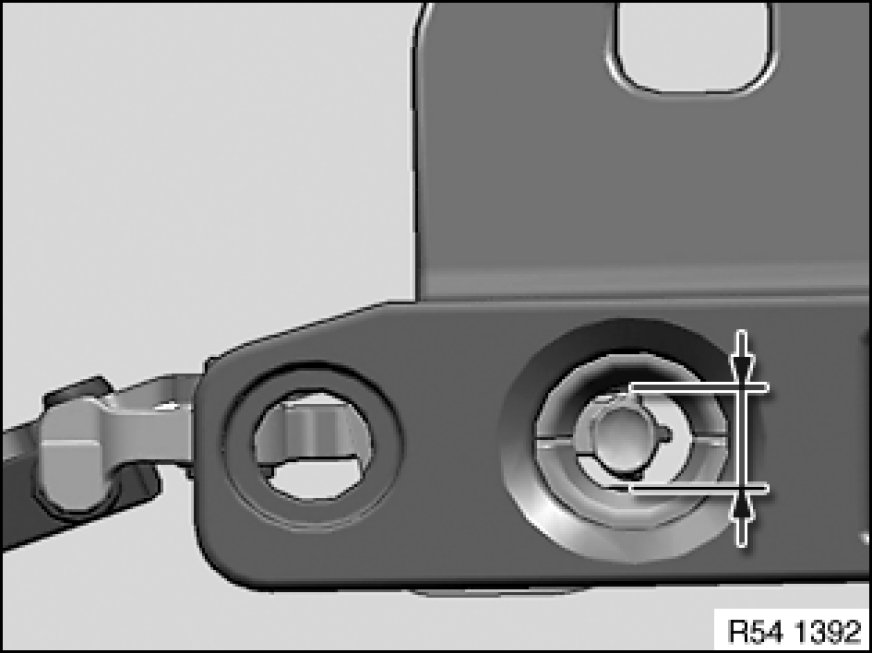

Carry out visual inspection from above.
Guide plate aligned uniformly to bore.
