Removing and Installing/Replacing Fluid Reservoir for Power Steering

32 41 250 - Removing and installing / replacing fluid reservoir for power steering





Special tools required:
- 32 1 260 32 1 260 Pliers





Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.

Seal off pipe connections with plugs.





Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- M54, N52: Remove gaiter with resonator
- M67, M67TU: Release coolant expansion tank and place to one side
- N62, N62TU: Remove intake filter housing/design cover (left)

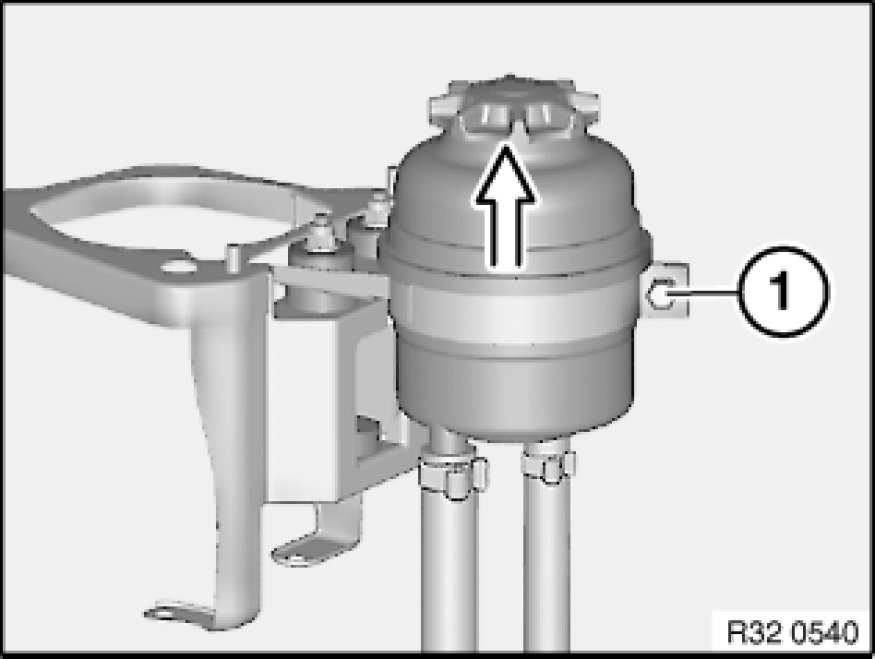

Release screw (1).

Tightening torque 32 41 9AZ Pump and Oil Supply.

Note:
If necessary, raise and/or turn fluid reservoir in order to gain better access to hose clamps.

Remove hose clamps if necessary with special tool 32 1 260 32 1 260 Pliers.

Disconnect suction line and radiator return line from fluid reservoir.

Lift out fluid reservoir.





After installation:

- Fill and bleed hydraulic system Bleeding Power Steering Unit
- Check pipe connections for leaks
