Power Steering Fluid Cooler: Service and Repair

17 11 370 - Removing and installing/replacing cooling loop for power steering (BMW ALPINA B7)





Necessary preliminary tasks:
- Remove radiator core Removing and Installing/Replacing Radiator Core (BMW ALPINA B7)





Note:
Texts refer to and illustrations show the left side.

The procedure is identical for the right filter side.

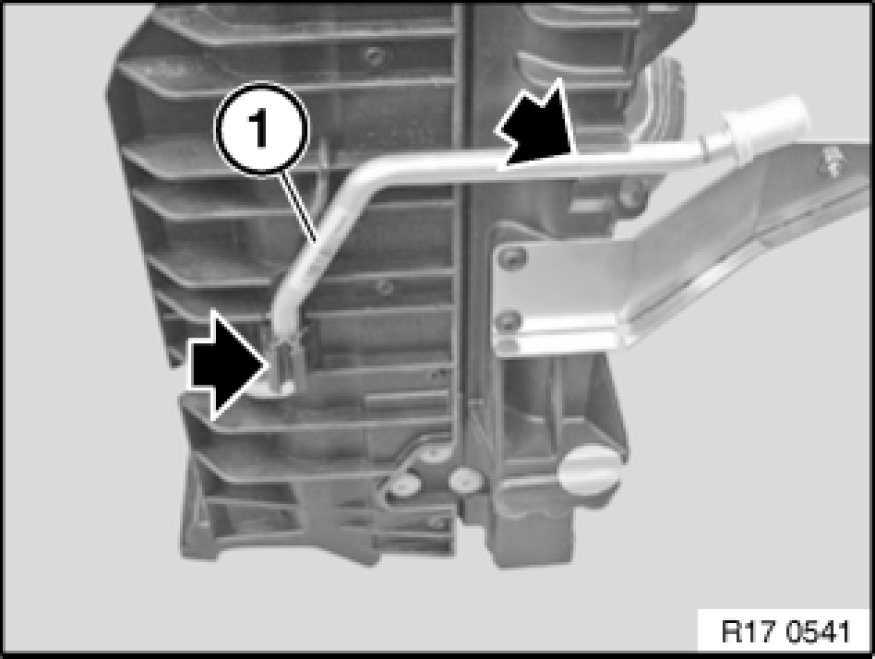

Release line (1) for cooling loop from holders.





Release screw.

Tightening torque: 5 Nm.

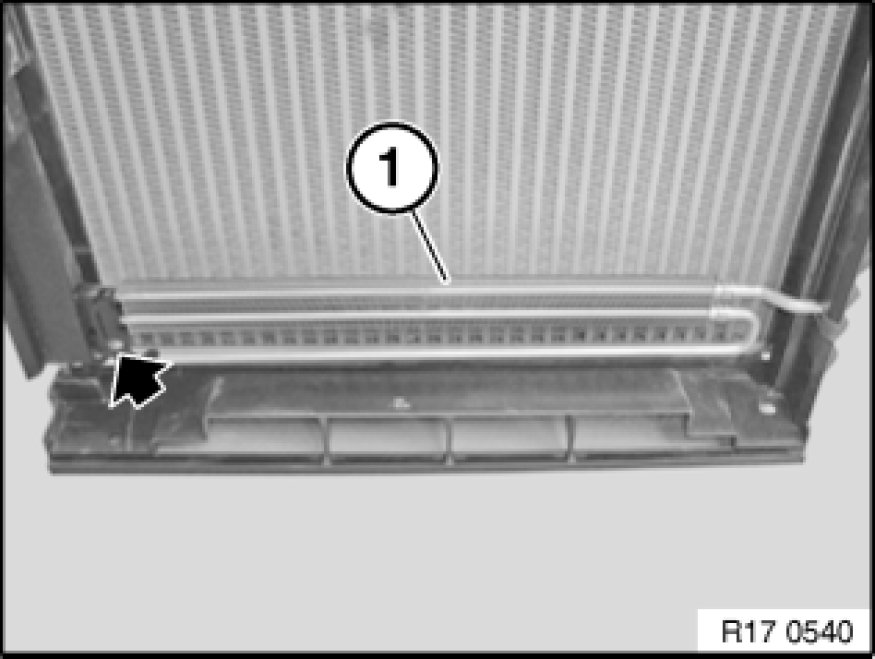

Remove cooling loop (1) towards front.
