Intercooler: Service and Repair

17 51 000 - Removing and installing/replacing intercooler (BMW ALPINA B7)





Necessary preliminary tasks:
- Remove radiator Removing and Installing/Replacing Radiator (BMW ALPINA B7).
- Remove module carrier Removal and Replacement





Note:
Texts refer to and illustrations show the left side. The procedure is identical for the right side.

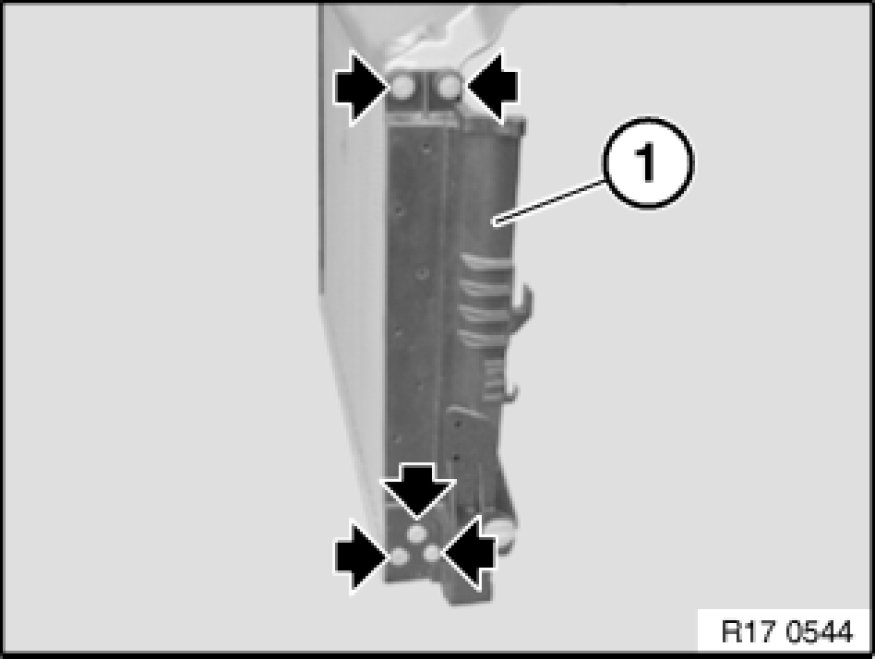

Unfasten screws.

Tightening torque: 9 Nm.
Remove bracket (1) from intercooler.
