Replacing Upper Holder on Headlight (Repair Kit)
Replacing Upper Holder on Headlight (Repair Kit)
63 12 ... - Replacing upper holder on headlight (repair kit)
Remove complete headlight.

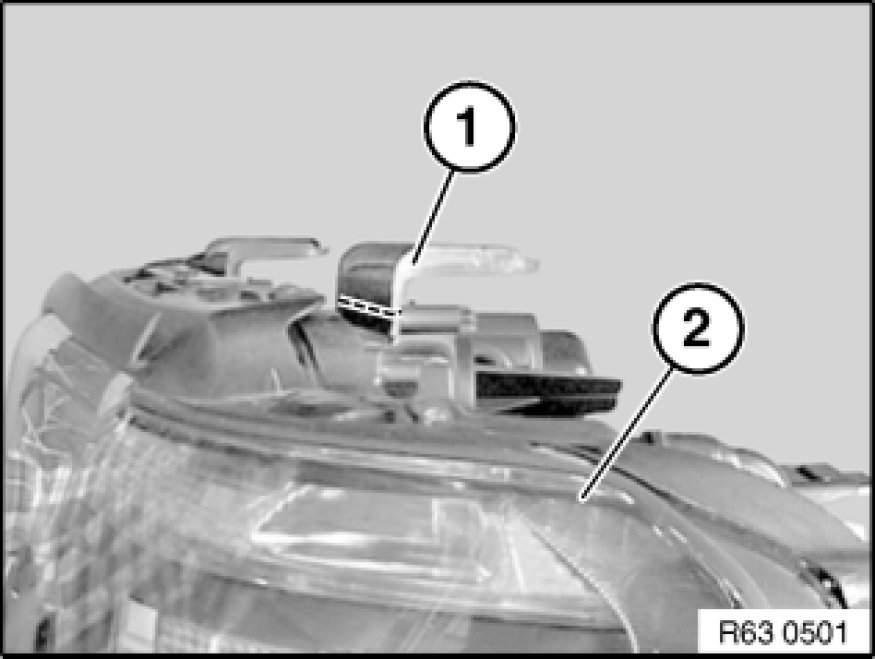

Cut off holder (1) along dotted line from headlight (2).

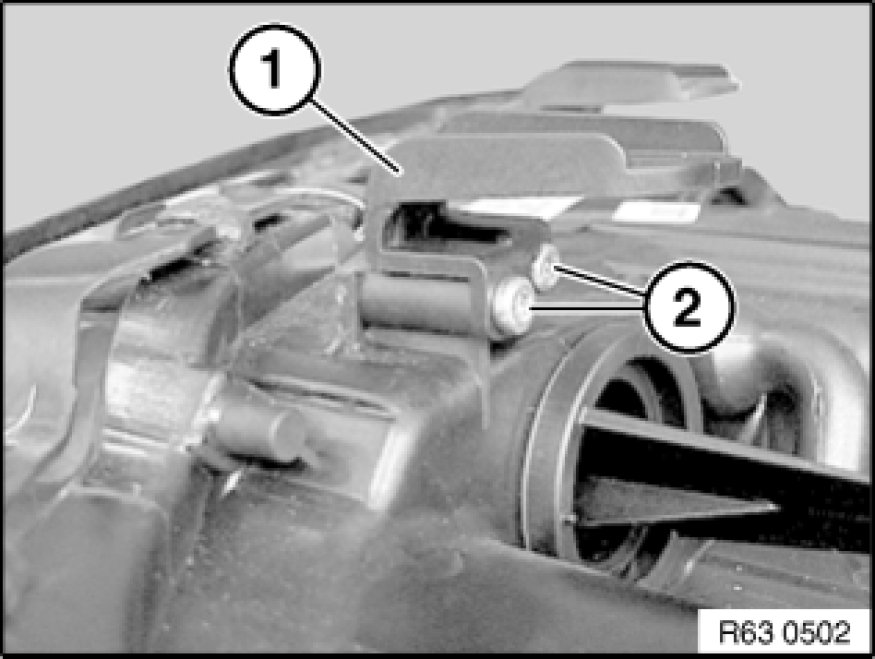

Secure holder (1) with screws (2).
