Replacing Right Engine Mount

22 11 001 - Replacing right engine mount (N62/N62TU)





Necessary preliminary tasks:
- Secure engine in installation position
- Release both engine mounts from above
- Remove front underbody protection
- Remove front wheels Removing or Installing Front or Rear Wheel
- Lower front axle support Lowering/Raising Front Axle Carrier
- Remove reinforcement plate Service and Repair
- Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform on raising the vehicle

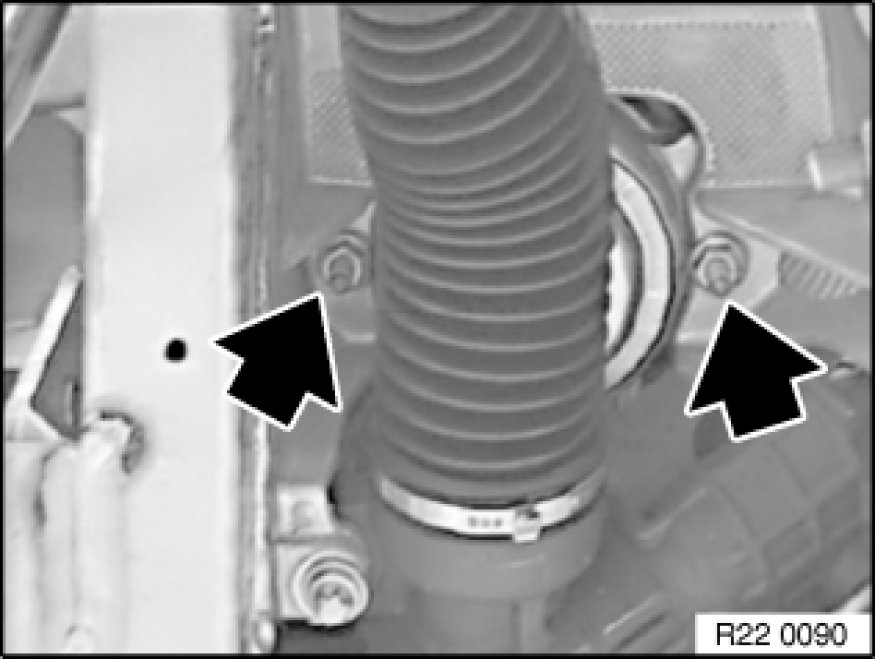

Release screw connection for engine mount at bottom right.
Remove engine mount towards front.





Installation:
Lug (1) of engine mount must point to middle of vehicle.
Engine mount designations:
1. Right engine mount: Even component number
2. Left engine mount: Odd component number
