Removal and Replacement

17 11 046 - Removing and installing/replacing module carrier (BMW ALPINA B7)





Necessary preliminary tasks:
- Remove cooling loop for power steering Service and Repair





Note:
Texts refer to and illustrations show the left side. The procedure is identical for the right side.

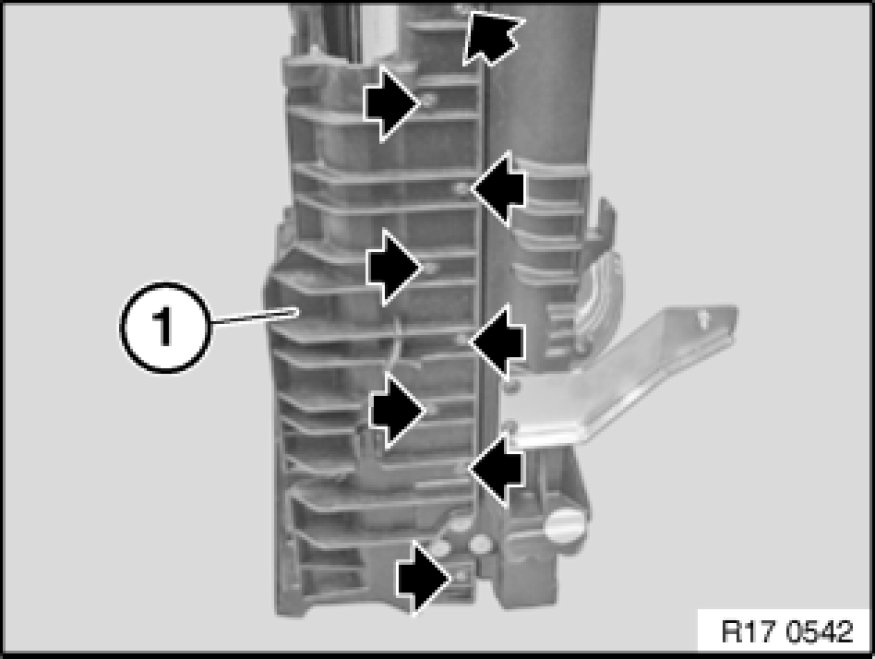

Unfasten screws.

Installation:
Tightening torque: 5 Nm.





Note:

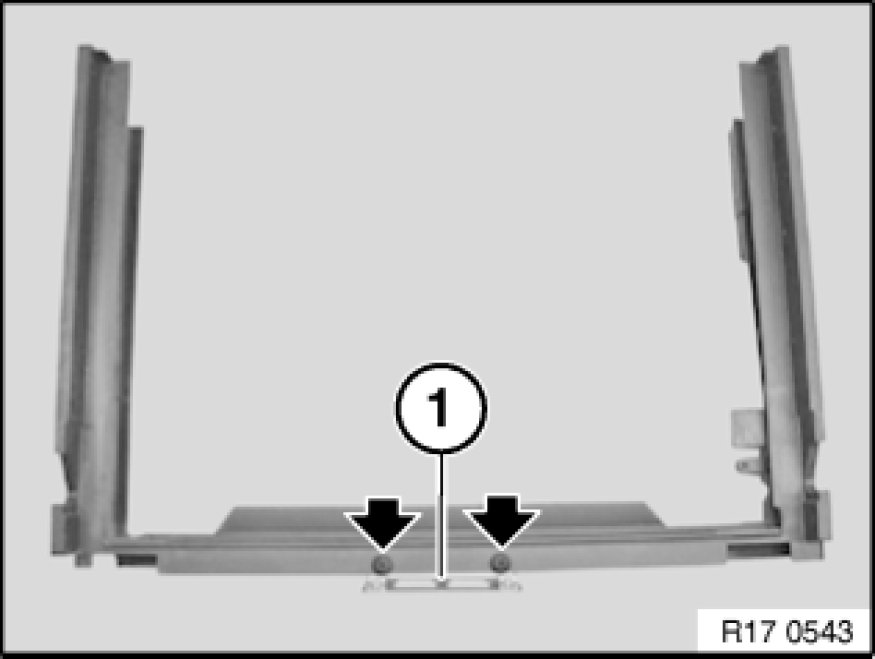

When replacing the module carrier, transfer the bracket (1) to the new component.
Unfasten screws.

Installation:
Tightening torque 8 Nm.
