Removing and Installing/Replacing Radiator (BMW ALPINA B7)

17 11 000 - Removing and installing/replacing radiator (BMW ALPINA B7)





Necessary preliminary tasks:
Remove radiator core Removing and Installing/Replacing Radiator Core (BMW ALPINA B7)





Release left and right expander rivets.

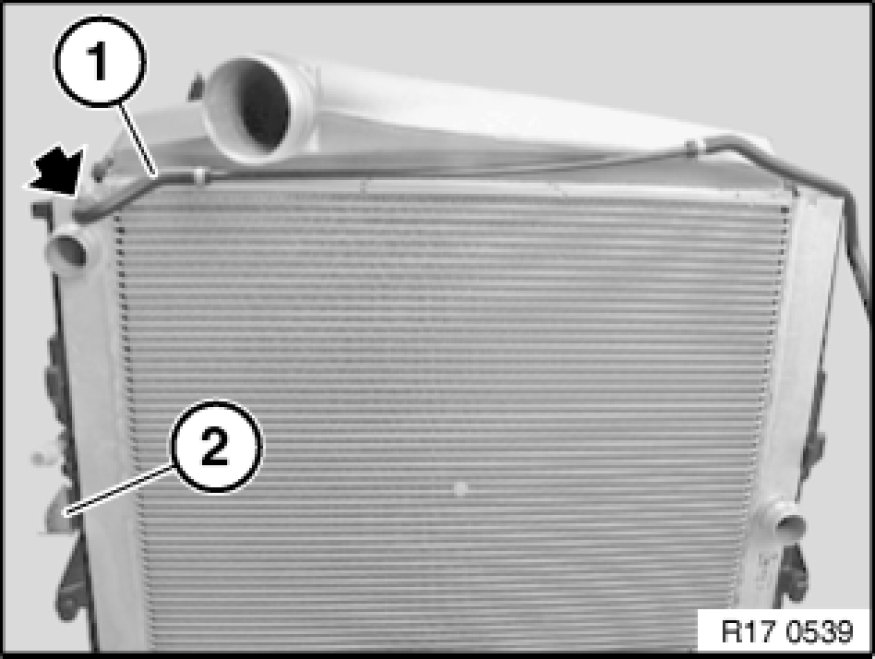

Unclip line (1) on left and right.
(Illustration shows right side)





Release screw.

Installation:
Pay attention to rubber mount (1).





Unfasten screws.
Feed out cover (2) and remove.

Installation:
Pay attention to rubber mount (1).





Unfasten clip.
Pull off hose (1).
Release screws on bracket (2), remove bracket.

Installation:
Tightening torque: 5 Nm.

Remove radiator from radiator core.
