51 11 156 - Removing and installing/replacing front bumper trim (BMW ALPINA B7)

51 11 156 - Removing and installing/replacing front bumper trim (BMW ALPINA B7)





Necessary preliminary tasks:
- Remove both protective strips
- Remove baseplate Service and Repair for number/license plate
- Remove underbody protection Removing and Installing/Replacing Front Underbody Protection.





Remove cover (1) and air duct (2) on left/right.

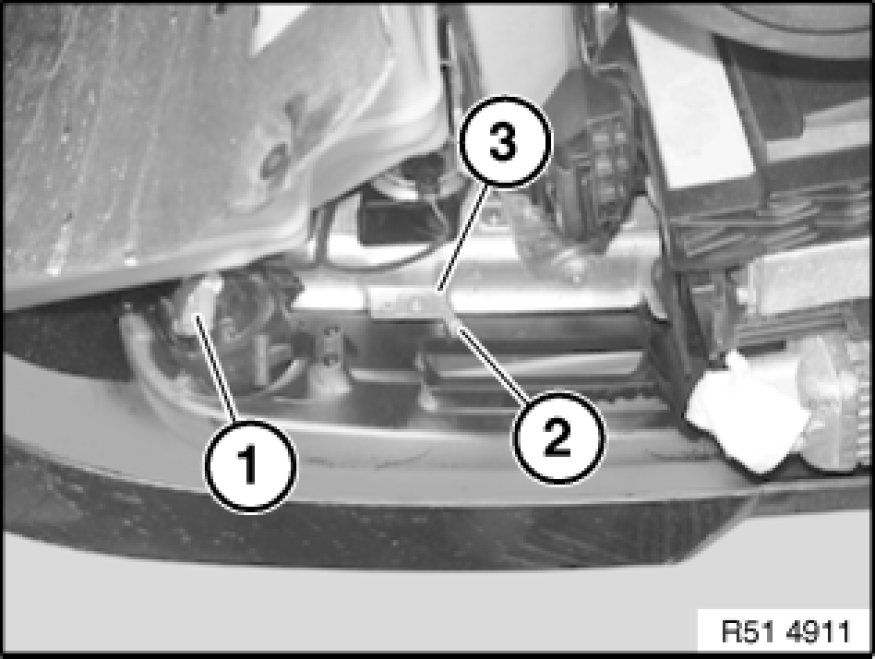

Disconnect plug connection (1) on left/right.
Release screws (2) on bracket (3) on left/right.





Release screws (1) or clip (1) on left/right.

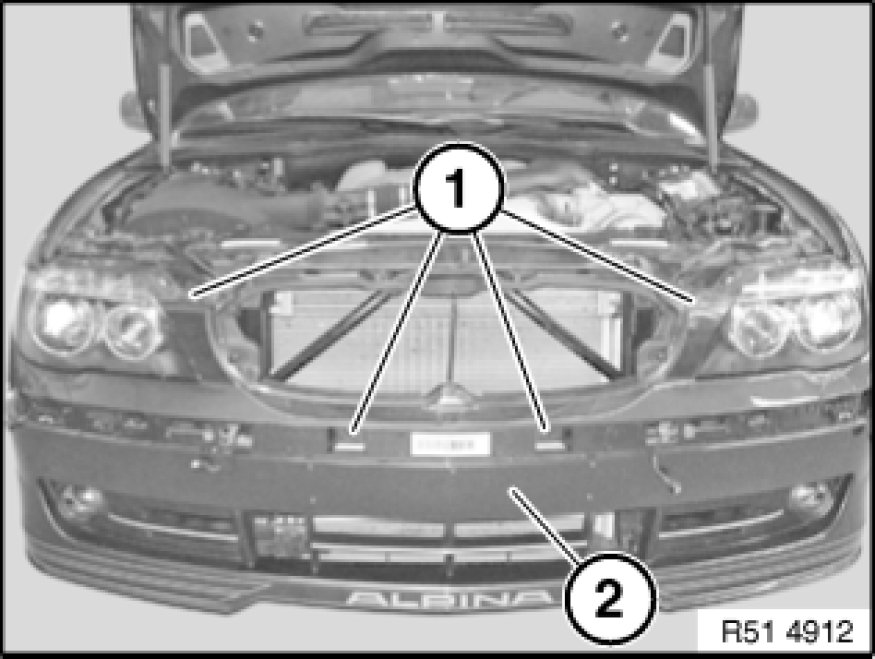

Release screws (1).

Important!
Bumper trim must not be pulled out sideways (risk of damage).

Feed out cable for ultrasonic transducer and, with a 2nd person helping, remove bumper trim (2) towards front.

Installation:
Observe gap dimensions.
