Replacing Valve for Rear A/C System (On Rear Air Conditioner)

64 51 516 - Replacing valve for rear A/C system (on rear air conditioner)





Necessary preliminary tasks:
- Pull out evaporator for rear air conditioner Removing and Installing/Replacing Evaporator for Rear Air Conditioner.

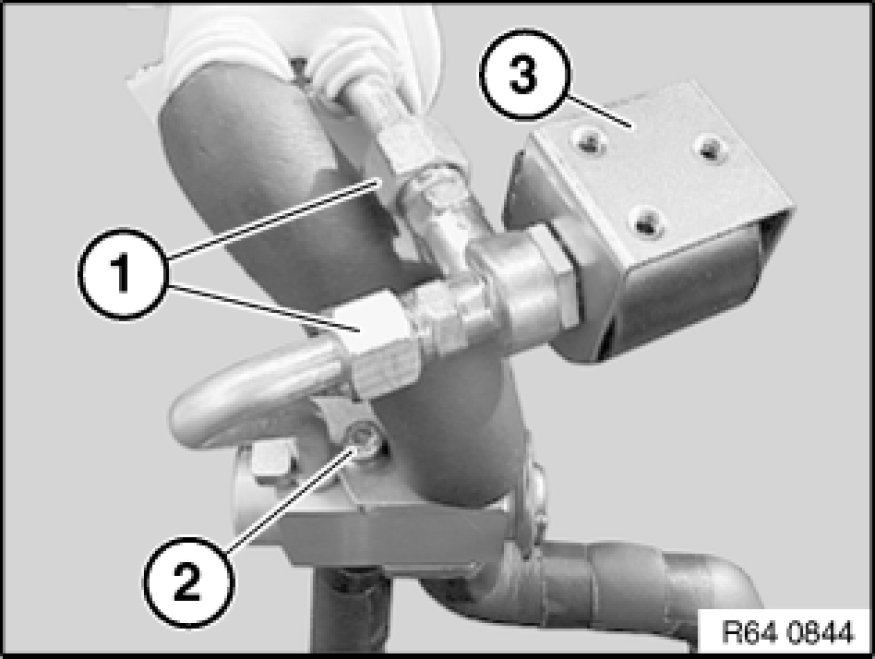

Unscrew nuts (1).
Release screw (2) slightly.
Remove valve for rear A/C system (3).

Installation:
Replace sealing rings.
