Replacing Front Left or Right Rubber Guide For Left or Right Door Window

51 32 211 - Replacing front left or right rubber guide for left or right door window





Necessary preliminary tasks:
- Remove front door window glass Service and Repair
- Remove decorative strip from window frame at front
- Remove mirror Removing and Installing/Replacing Mirror on Left or Right Front Door





Remove sound insulation (1).

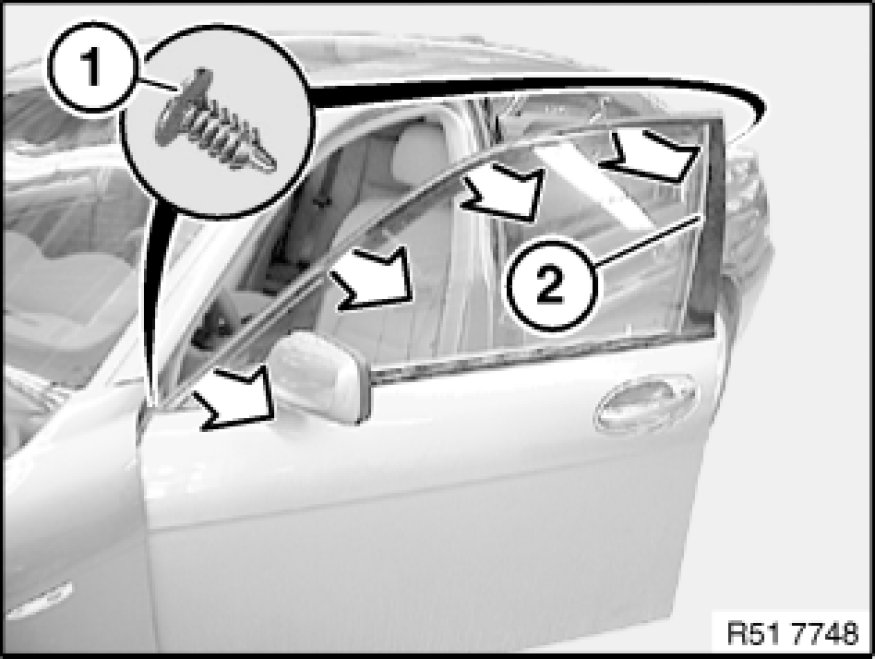

Release rivets (1).
Pull rubber guide (2) out of window guide.
Remove rubber guide (2) from window frame.

Installation:
Moisten rubber guide (2) with water before fitting.

Insert rubber guide at front/bottom into window guide rail.





Installation:

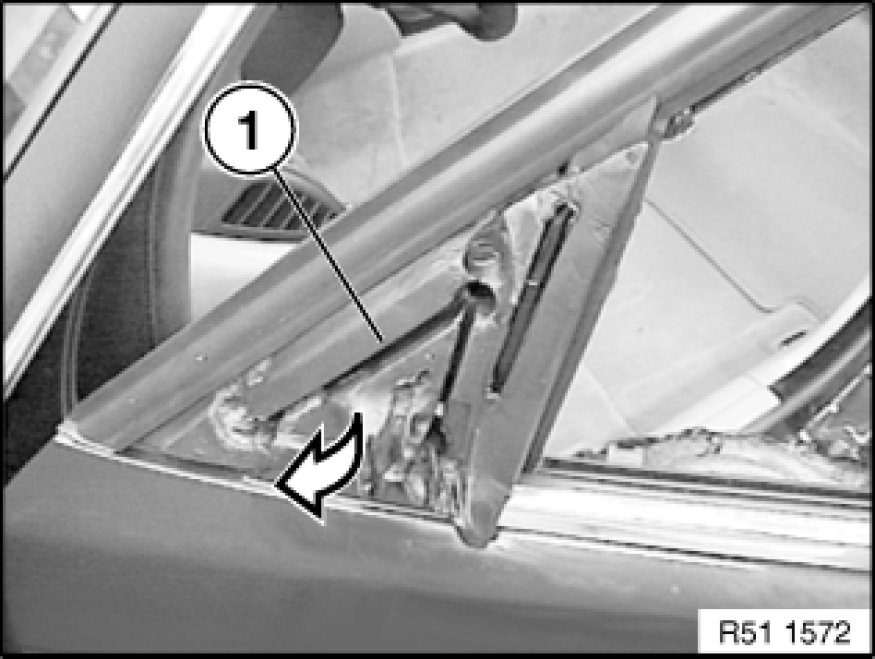

Sound insulation (1) must be fitted and must not be damaged.
If necessary, replace defective sound insulation (1).
