Removing and Installing/Replacing Housing Cover on Inner Left or Right Door Window Frame

51 32 160 - Removing and installing / replacing housing cover on inner left or right door window frame





Necessary preliminary tasks:
- Remove front door trim panel Removing and Installing Left or Right Front Door Trim Panel

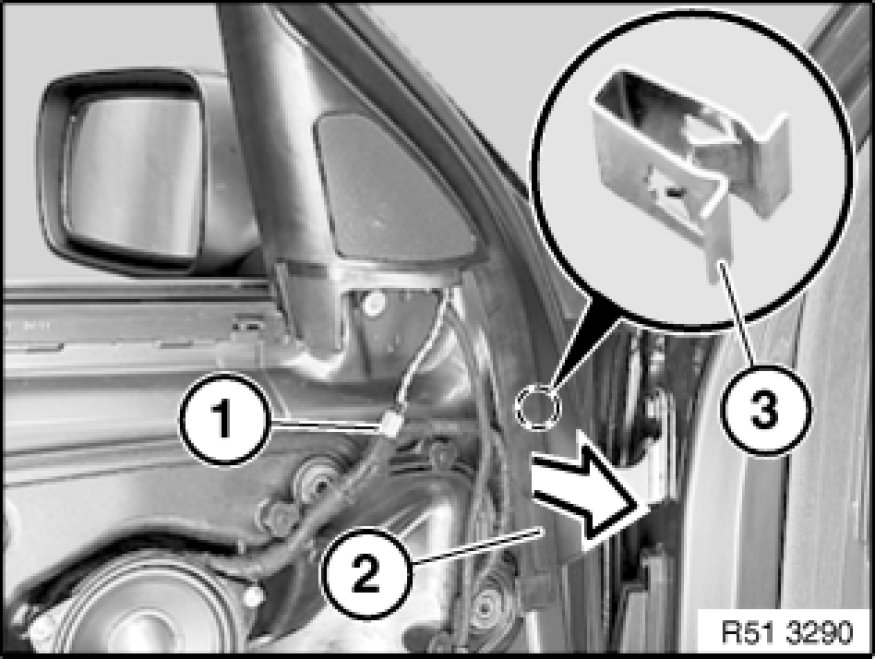

Disconnect plug connection (1) for speaker.
Lever cover (2) in direction of arrow out of retainer (3).

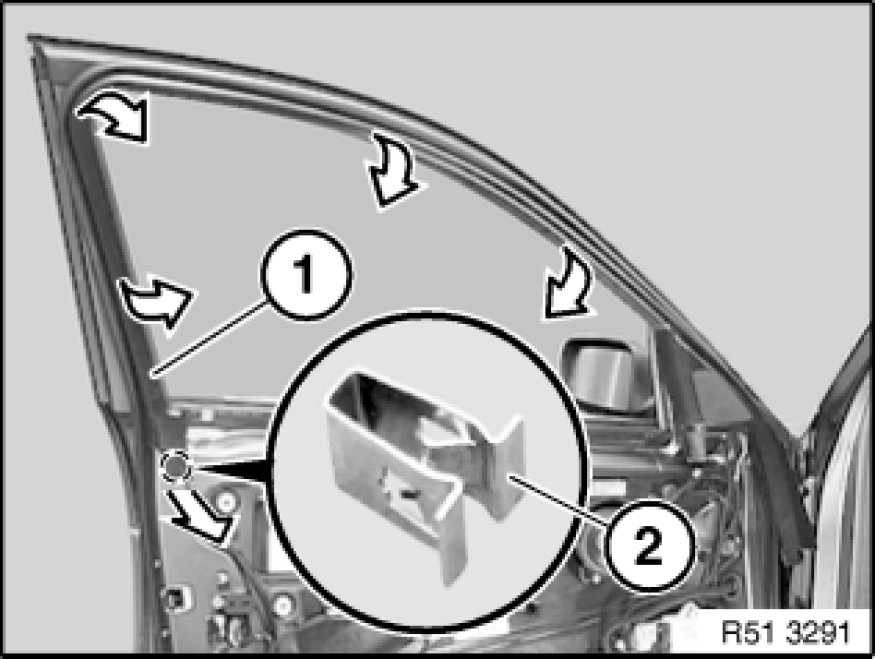

Detach cover (1) from retainer (2) and remove rest.





Installation:

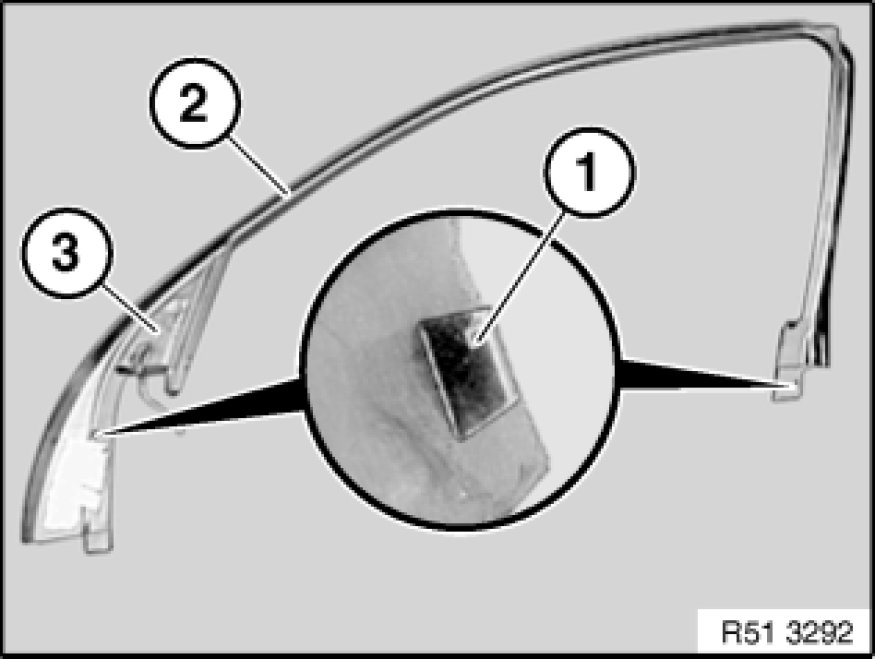

Following parts of cover (2) must not be damaged or missing:
1 - Bridges
3 - Foam
Initialize power window Programming and Relearning.

Replacement:

Remove speaker Removing and Installing/Replacing Speaker (Treble Speaker, Front Door).
