51 14 008 Replacing (removing and installing) number/letter combination on front left or right side panel

51 14 008 - Replacing (removing and installing) number/letter combination on front left or right side panel





Important!
The "Instructions for number/letter combination cementing 51 14 ... Instructions For Attaching Number/Letter Designation Combination" serve as the basis for these repair instructions and must be followed without fail.

Note:
Procedure is also mandatory for right side, outer edge of number is then positioned.





Note:

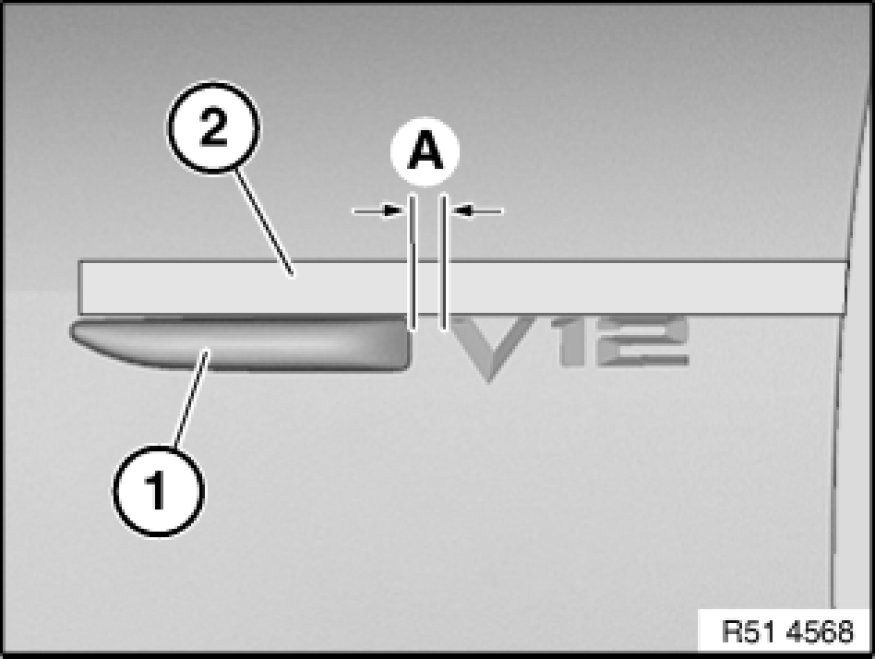

Number/letter combination is stuck on at a height level with turn indicator (1).
Stick on adhesive tape (2) horizontally above turn indicator (1).

Mark measurement "A" of turn indicator (1).
- Measurement "A" left 12 mm

- Measurement "A" right 11 mm

Remove liner (protective strip for adhesive surface).
Position number/letter combination up against adhesive tape (2) and at measurement "A" and press down firmly.
Remove carrier film.
