OBD Socket Outlet
>>

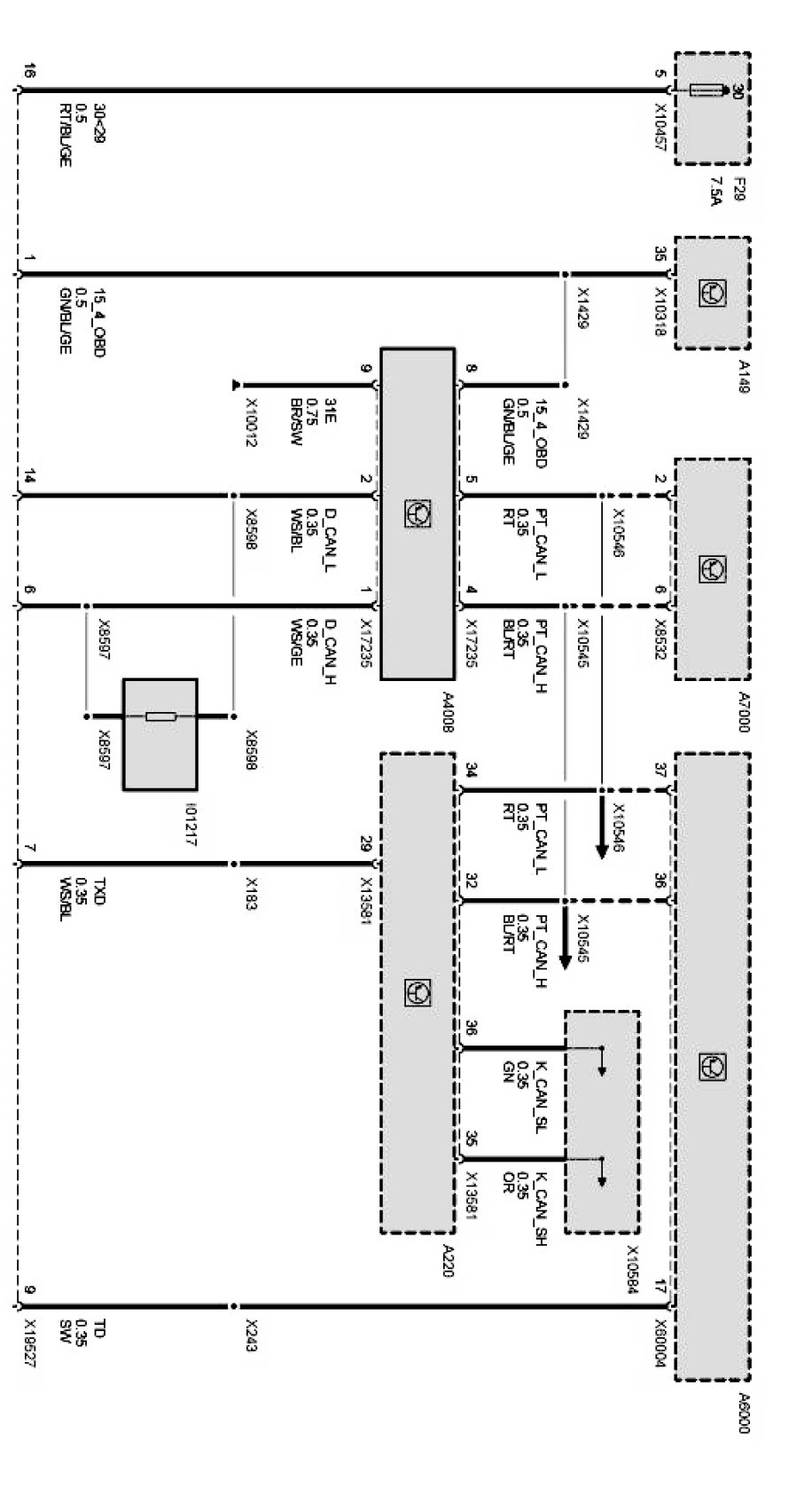

OBDII Socket (N62/Tu Engine As of 09/07)
OBDII Socket (N62/Tu Engine As of 09/07)
