Removing and Installing/Replacing Compensator

84 21 526 - Removing and installing/replacing compensator

Remove luggage compartment wheel arch trim on left .

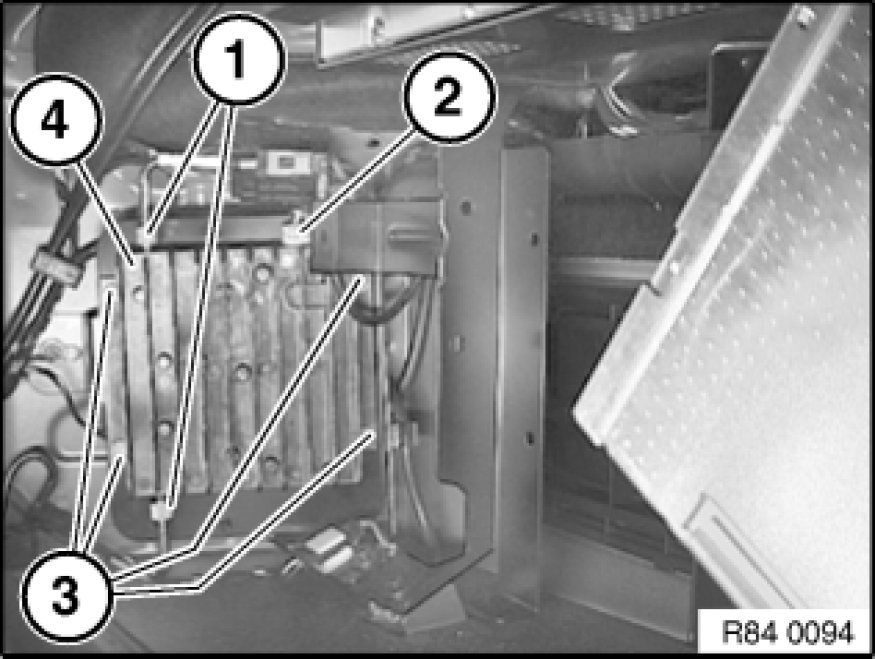

Release knurled nuts and disconnect antenna connector (1).
Unfasten plug connection (2) and disconnect.
Release screws (3) and remove compensator (4).
