Suspension Fluid Level Switch: Service and Repair

32 41 ... - Replacing level switch for Dynamic Drive fluid reservoir





Necessary preliminary tasks:
- Detach fluid reservoir Removing and Installing/Replacing Fluid Reservoir for Power Steering with Dynamic Drive / Active Front Steering from holder, raise and if necessary remove sideways

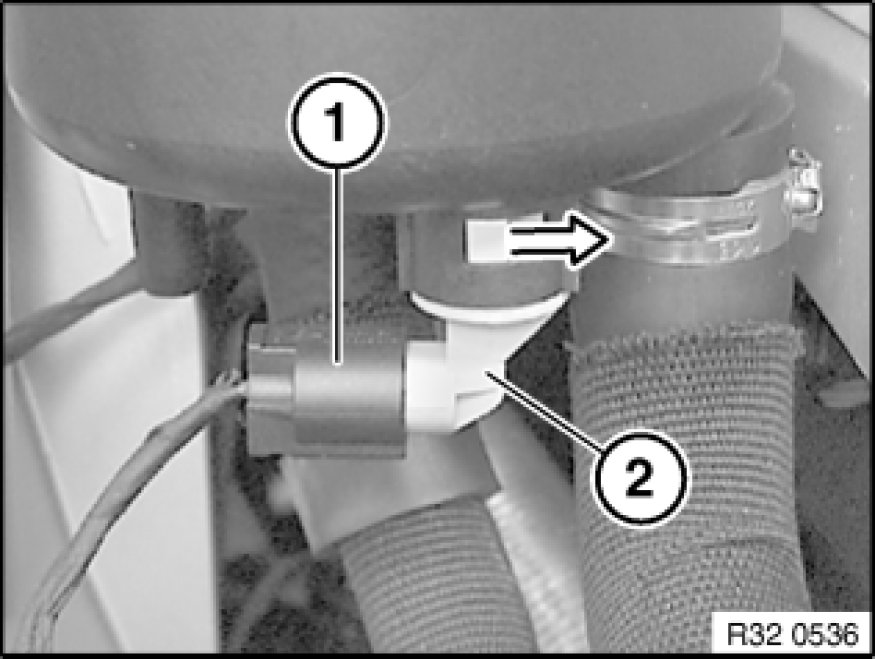

Disconnect plug connection (1).
Turn level switch (2) through approx. 45° and remove towards bottom.
