Home >> BMW >> 2008 >> 650i Convertible (E64) V8-4.8L (N62TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and Air Conditioning Functions >> Temperature Control >> Temperature Control (IHKA High With (N62TU Engine) As of 03/07)

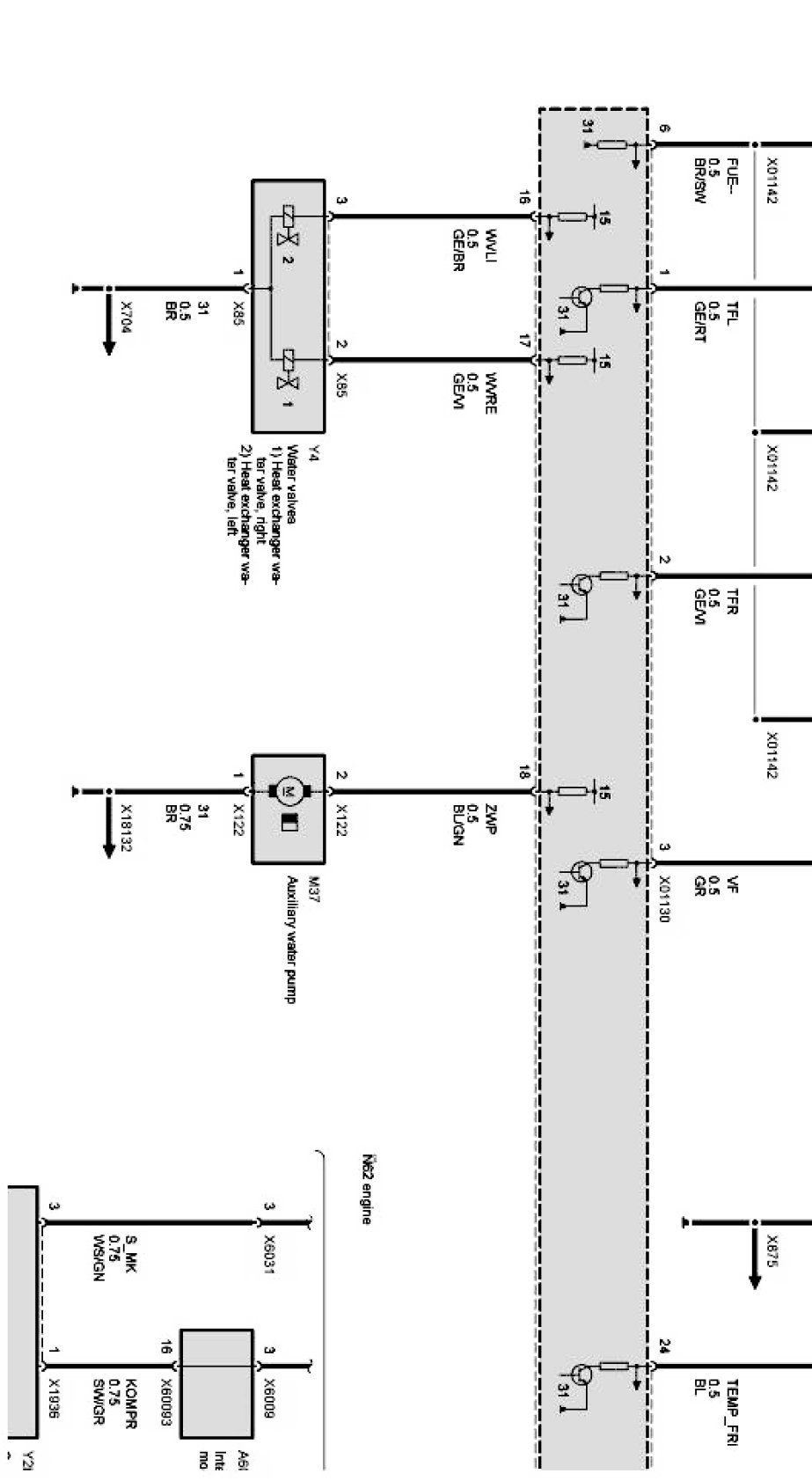

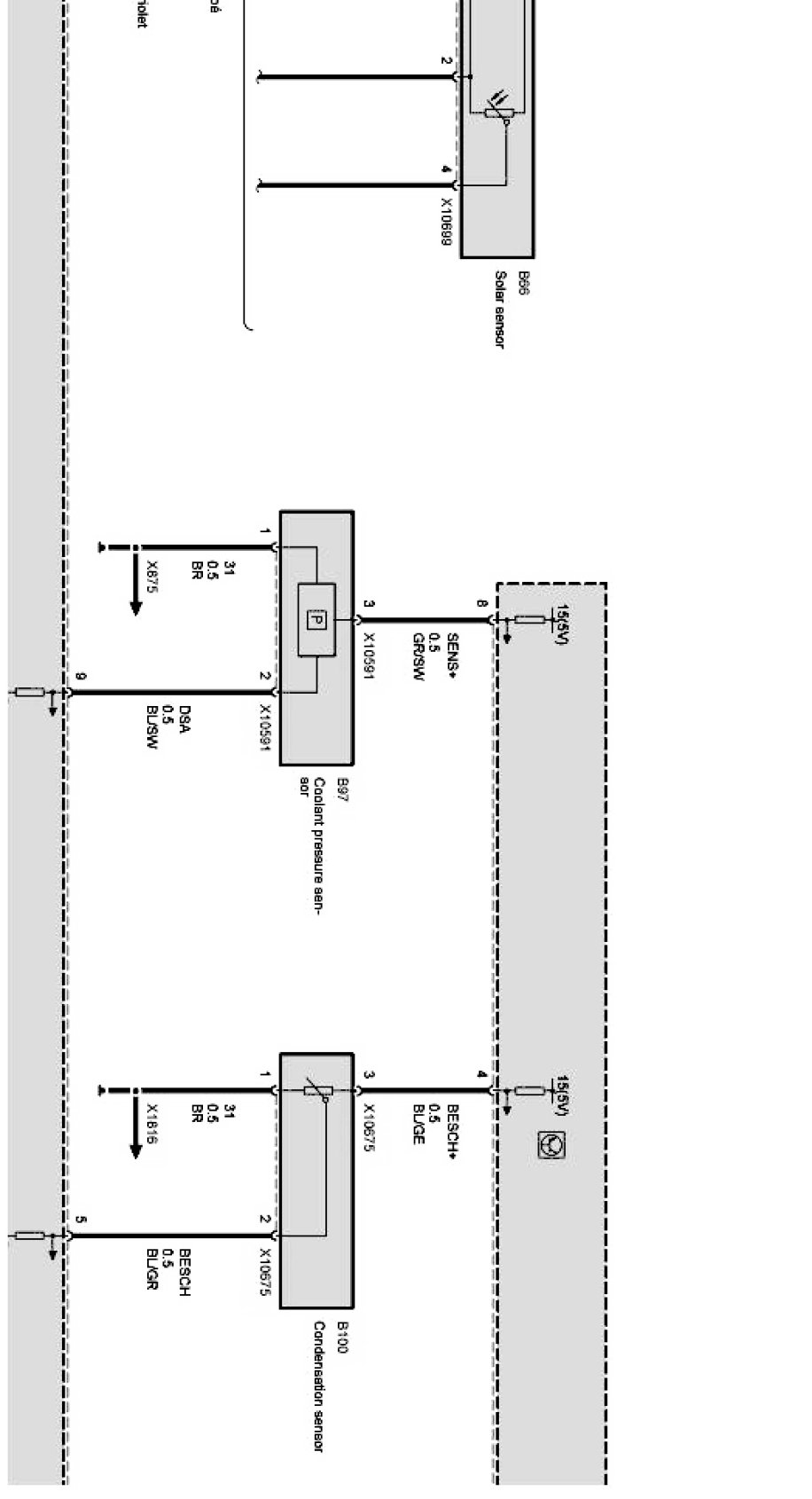

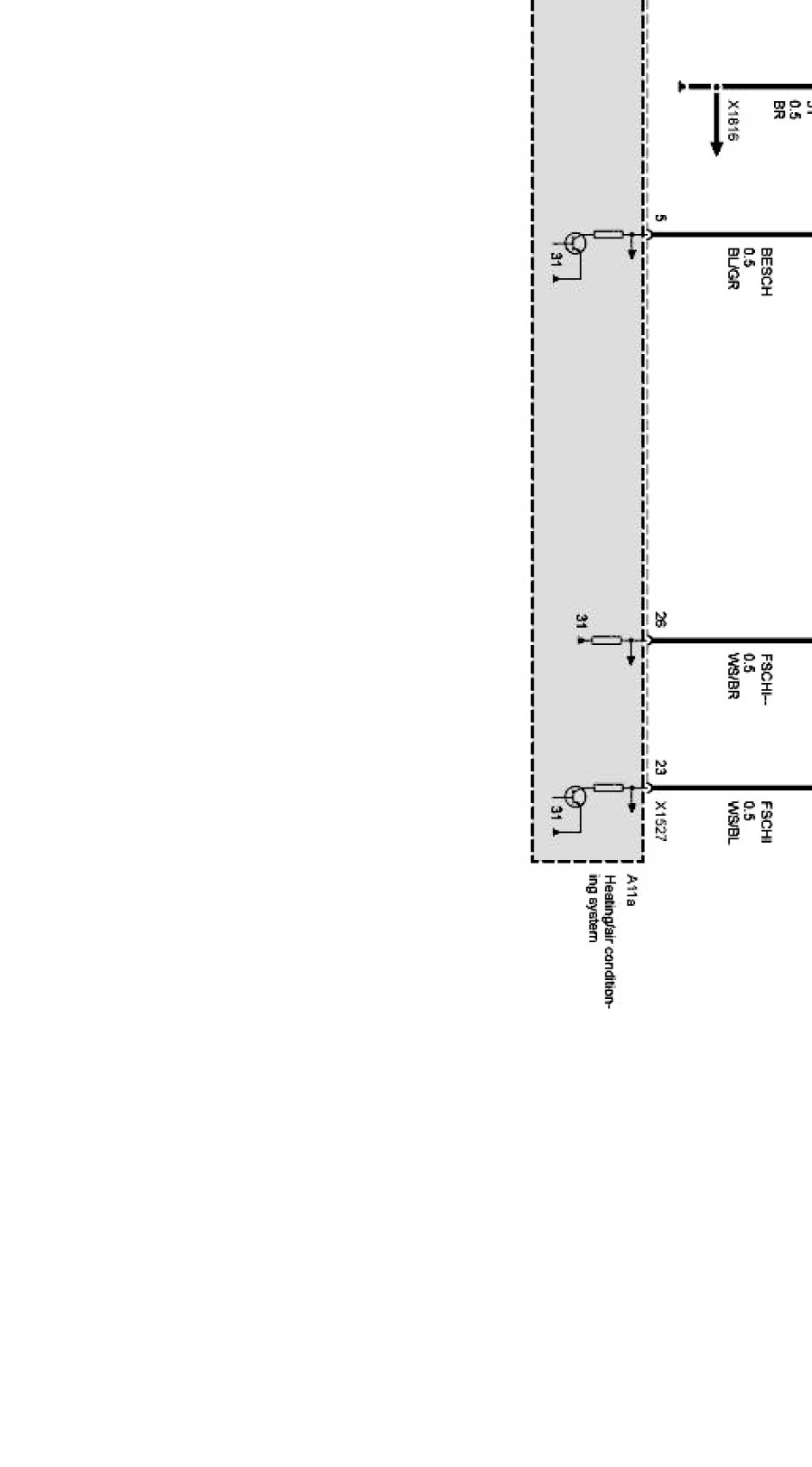

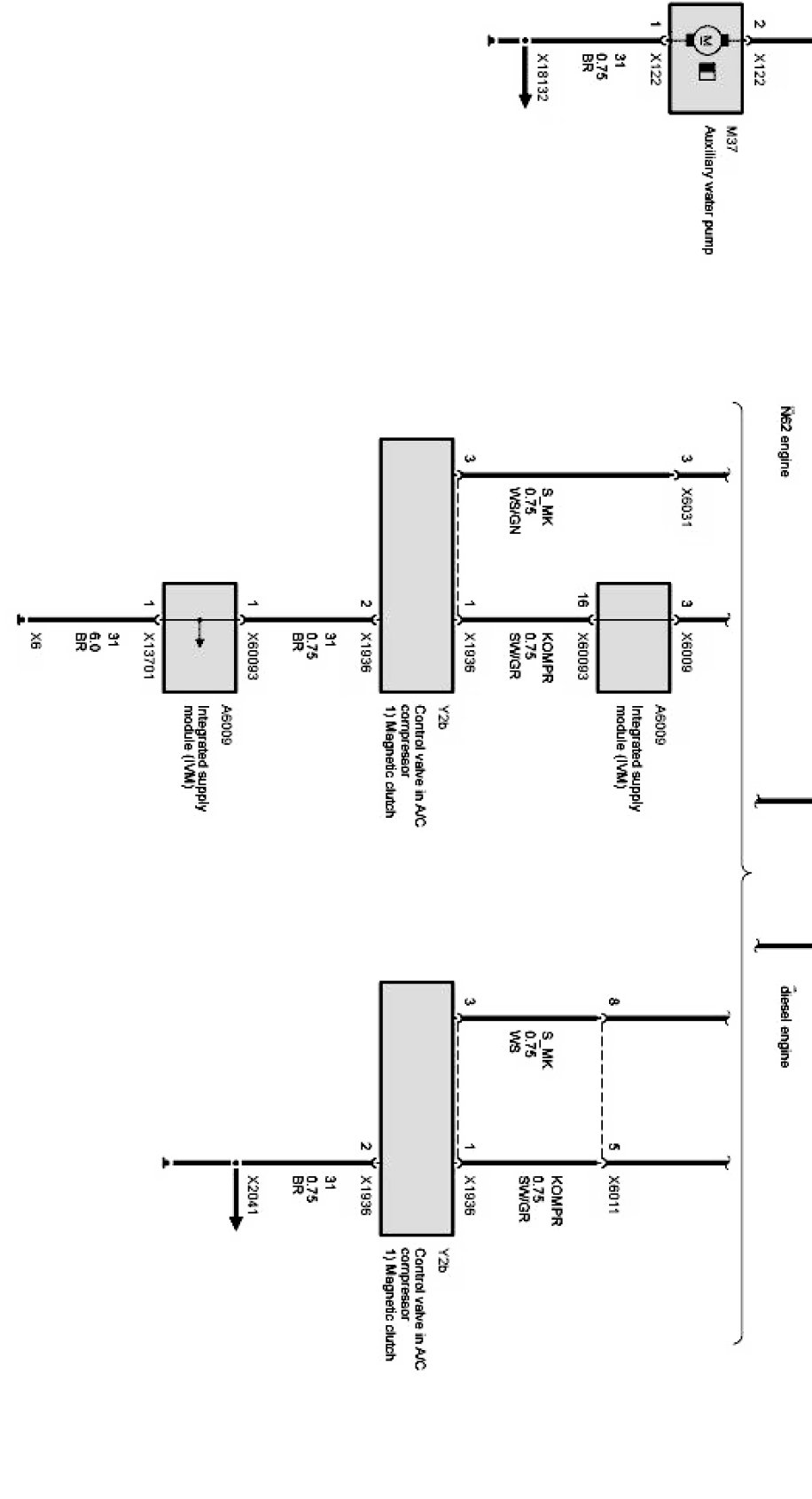

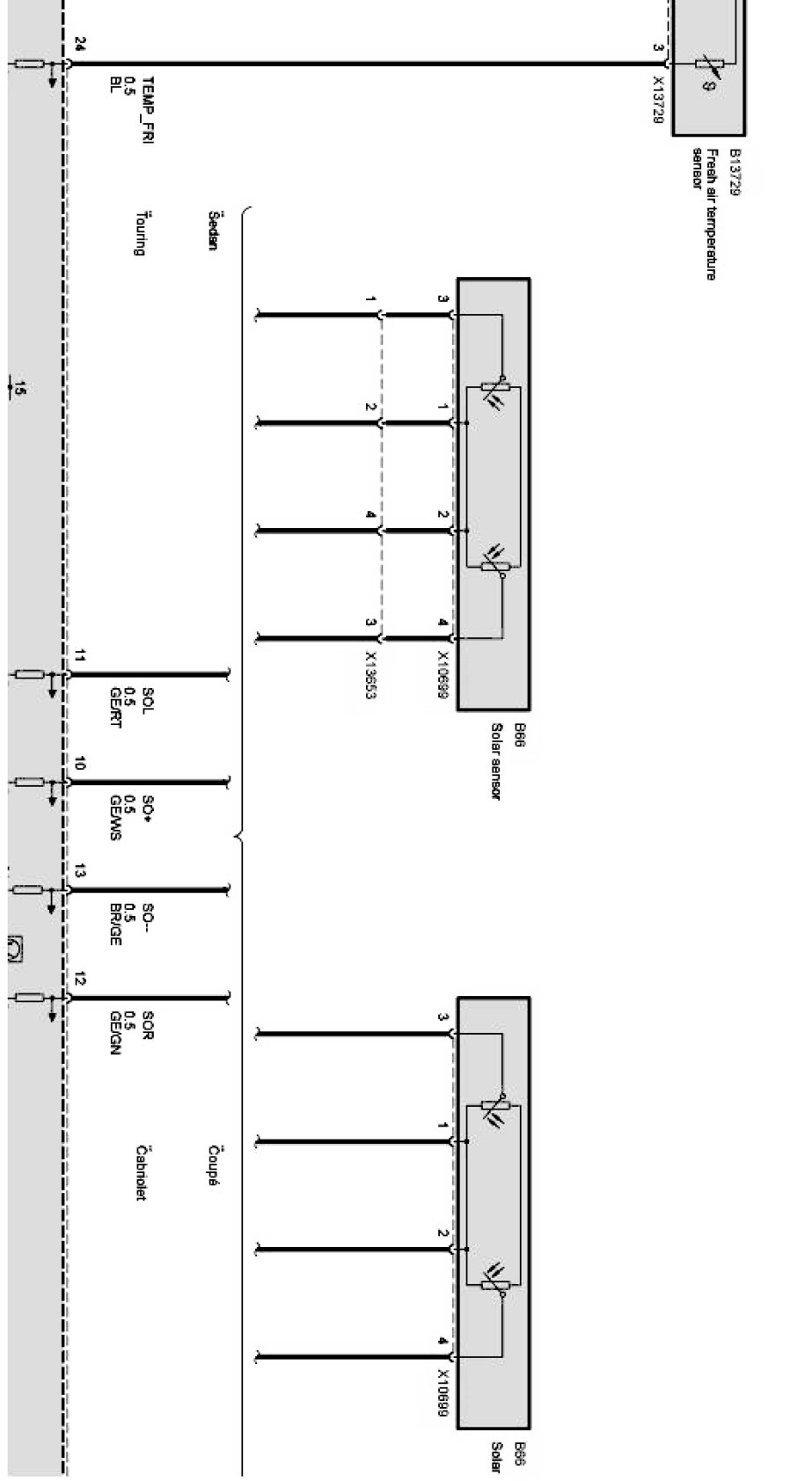

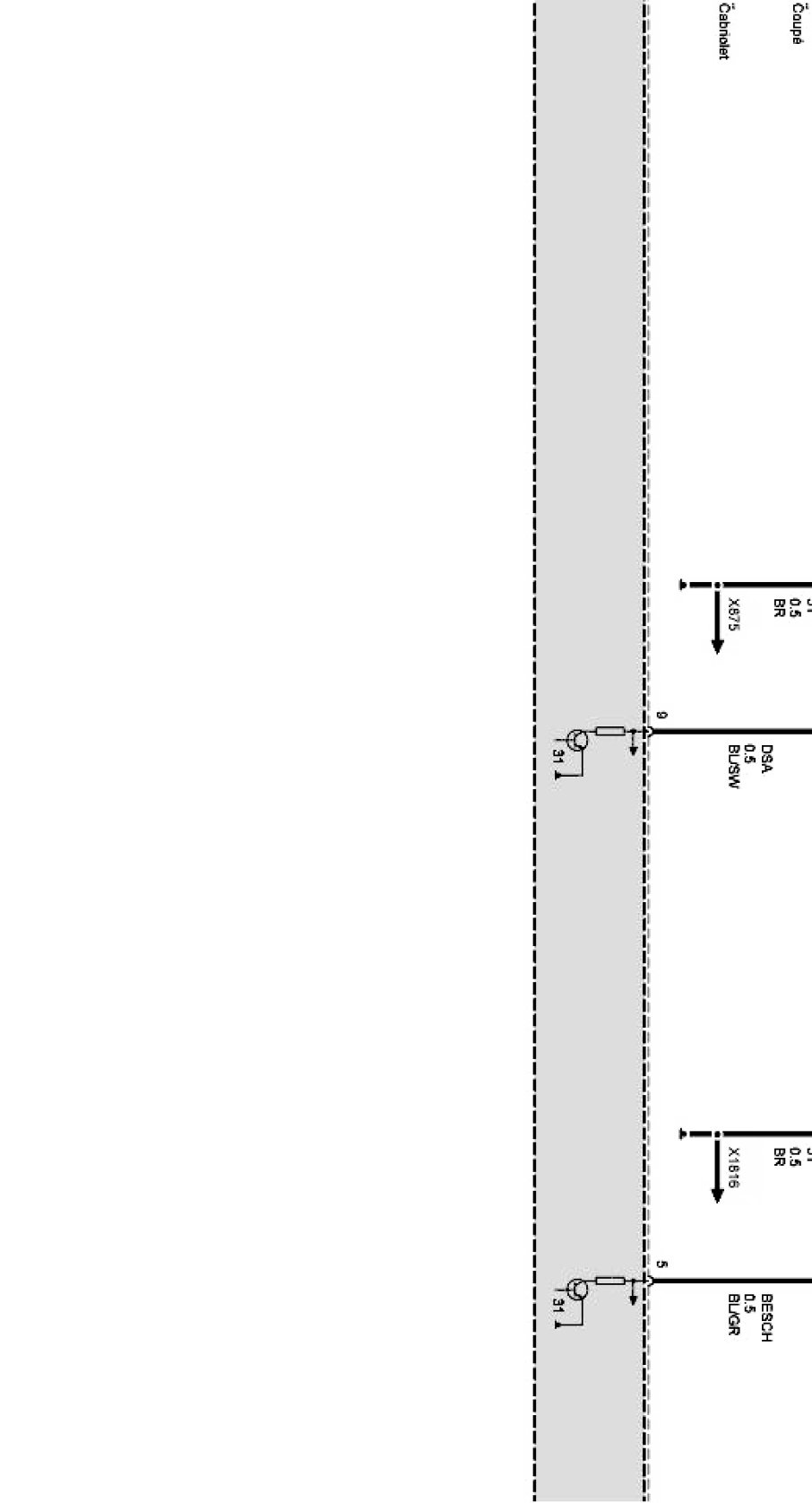

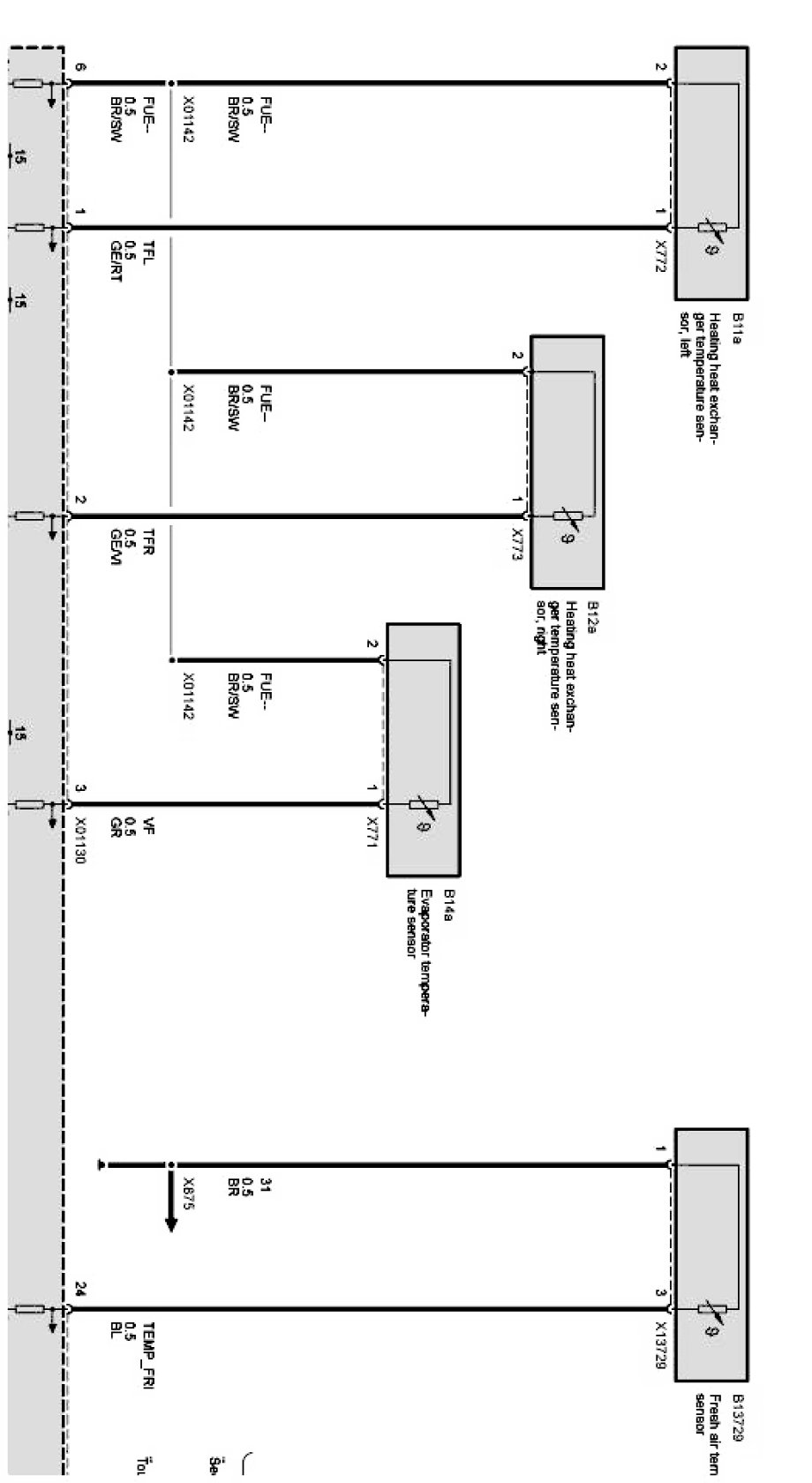

Temperature Control (IHKA High With (N62TU Engine) As of 03/07)
