Removing and Installing/Replacing Rear Window Wiper Motor (Touring)




61 62 060 - Removing and installing/replacing rear window wiper motor (Touring)





Special tools required:
- 61 1 330





Necessary preliminary tasks:
- Remove trim for rear lid

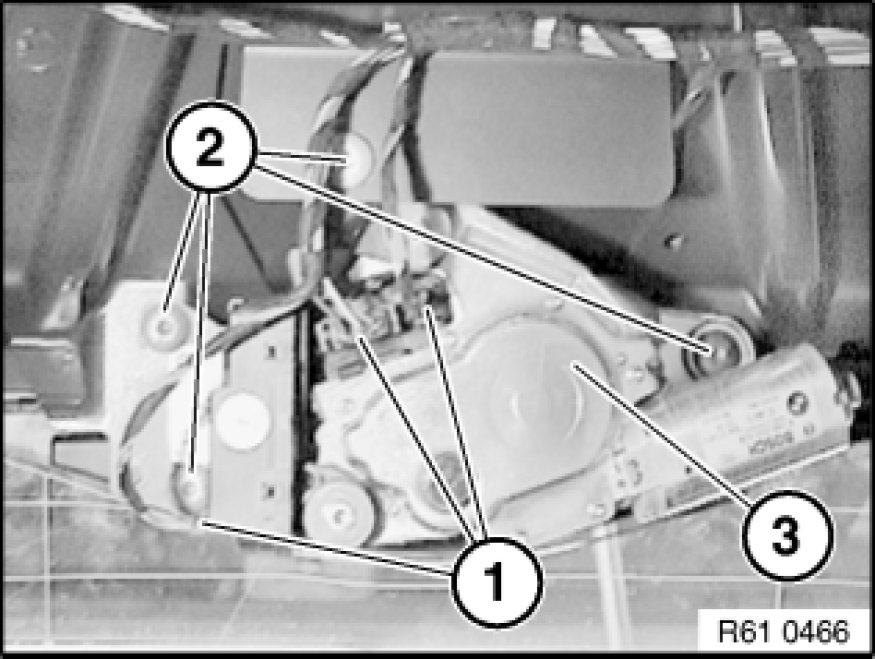

Disconnect plug connections (1).
Release screws (2).
Remove rear window wiper motor (3).





Replacement:

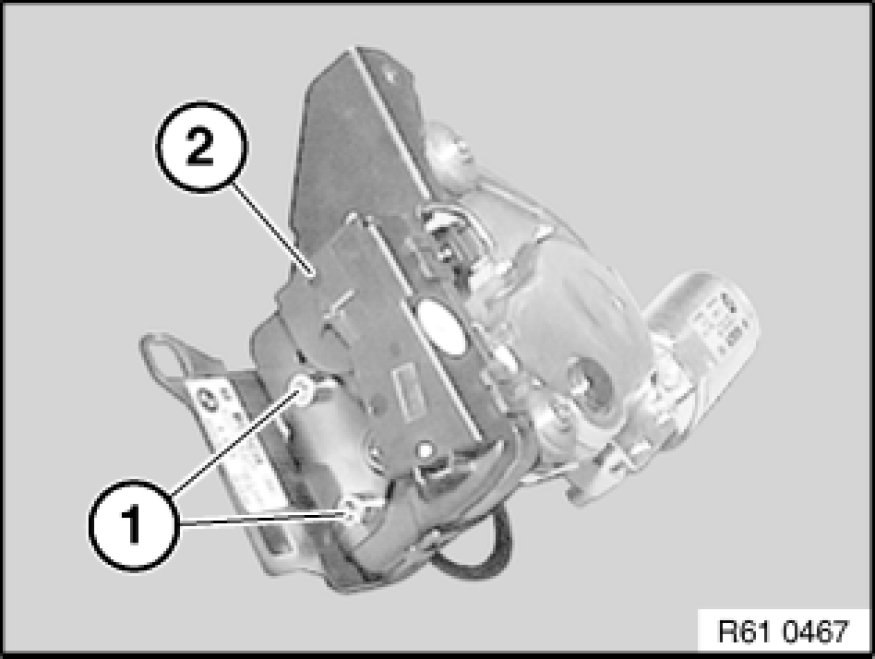

Release screws (1) and remove rear window lock (2).





Installation:
Place special tool 61 1 330 on drive of rear window wiper and close rear window.
Allow journal of wiper shaft bearing to snap into bore (1) with rear window wiper standing vertical.
Tighten rear window wiper motor to specified torque, tightening torque 61 62 8AZ 61 62 Tailgate Window Wiper.
