Replacing Vent Line

37 12 ... - Replacing vent line





Necessary preliminary tasks:
- Remove rear right wheel arch cover Service and Repair





Detach cable tie.

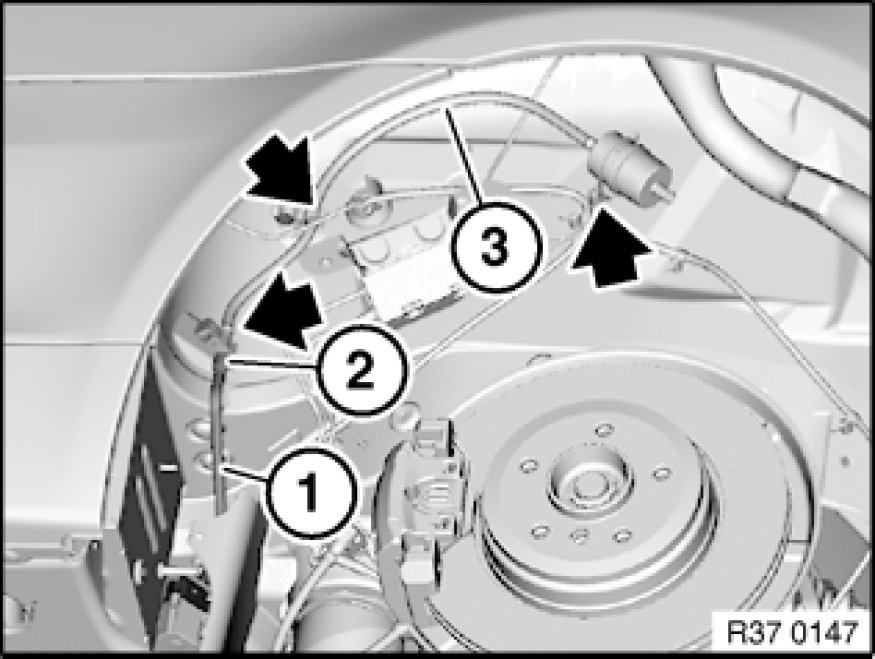

Disconnect quick-release fastener (2) of vent line (3) from feed line (1) of air supply unit.
Unclip and remove vent line (3).
