Replacing Bulb(S) For Left Or Right Rear Light (Rear Lid)

63 99 312 - Replacing bulb(s) for left or right rear light (rear lid)





Necessary preliminary tasks:
- Remove rear light Removing and Installing/Replacing Left or Right Tail Light (on Rear Lid)





Warning!
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).





Build date up to 03/07:

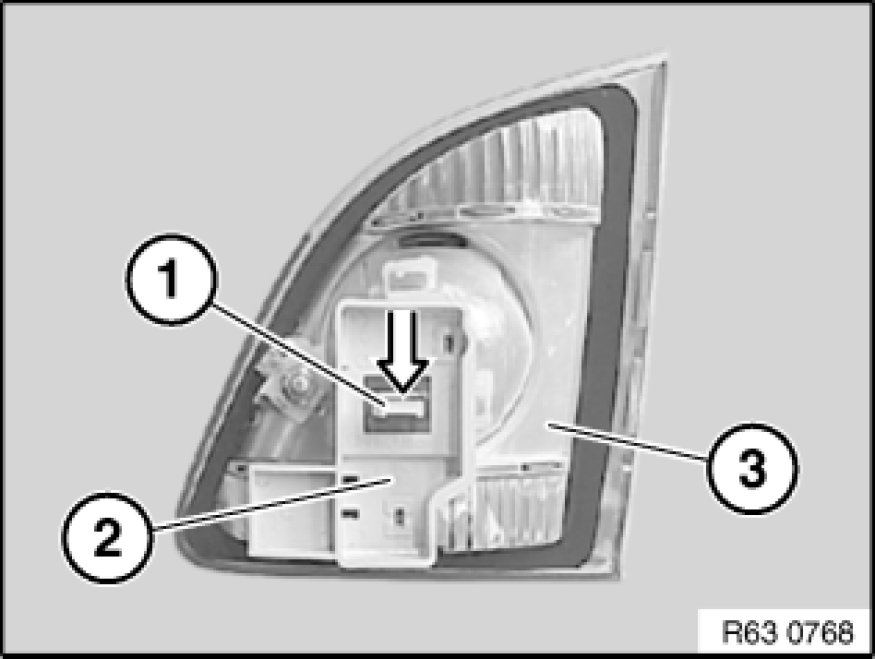

Unlock tab (1) in direction of arrow and remove bulb holder (2) from rear light (3).
Pull corresponding bulb out of bulb holder.

Installation:
Note bulb type Rear Light Cluster E61 (From 03/07).





Build date after 03/07:

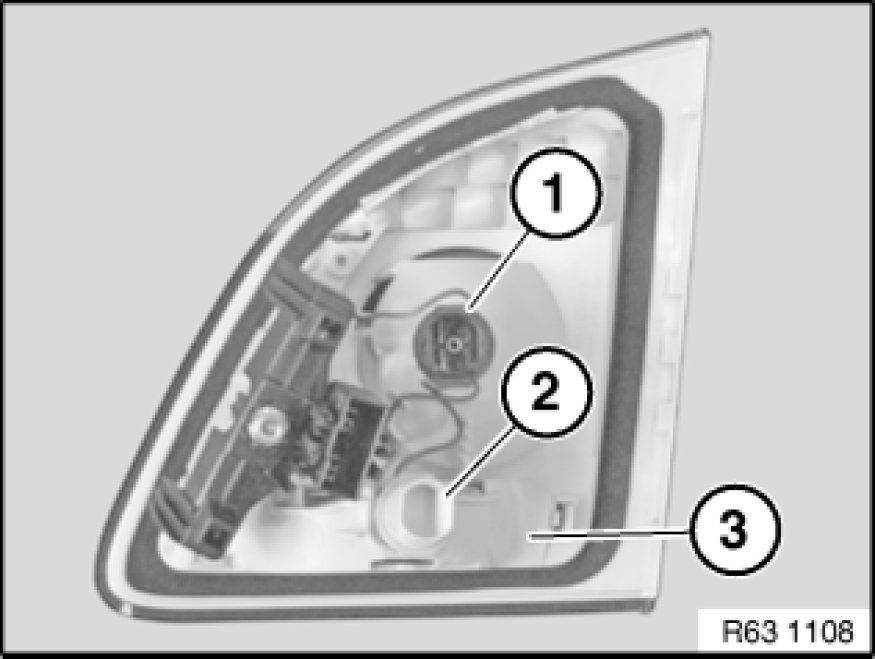

Pull bulb holder (1) or bulb holder (2) out of rear light (3) and change corresponding bulb.

Note:
1. Bulb for rear fog light/brake light
2. Bulb for reversing light

Installation:
Note type of bulb Rear Light Cluster E61 (From 03/07).
