Replacing Servodrive of Stratification Flap

64 11 869 - Replacing servodrive of stratification flap





Necessary preliminary tasks:
- Remove right glovebox with housing 51 16 366 Removing and Installing Right Glovebox With Housing.

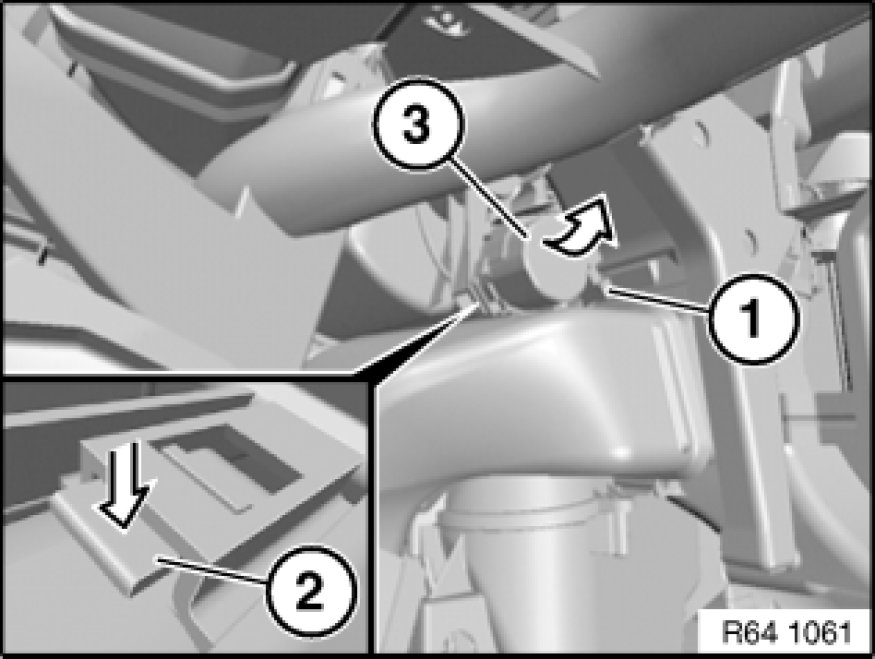

Unfasten plug connection (1) and disconnect.
Press lock (2) and pull out servodrive for stratification flap (3) in direction of arrow.

Installation:
Follow repair instruction "Installing servodrive Installing Servodrive".
Servodrive for stratification flap (3) must snap audibly into place.
