67 61 005 Removing and Installing/Replacing Drive with Gear (Front) for Actuating Slide/Tilt Sunroof

67 61 005 - Removing and installing/replacing drive with gear (front) for actuating slide/tilt sunroof





Necessary preliminary tasks:
- Remove complete ceiling light (front) Removing and Installing/Replacing Complete Ceiling Light (Front)





Unclip front roofliner trim (1) in direction of arrow.
Disconnect associated plug connections and remove front roofliner trim (1).





Note:
Secure drive with gear for actuating slide/tilt sunroof (3) against falling out.

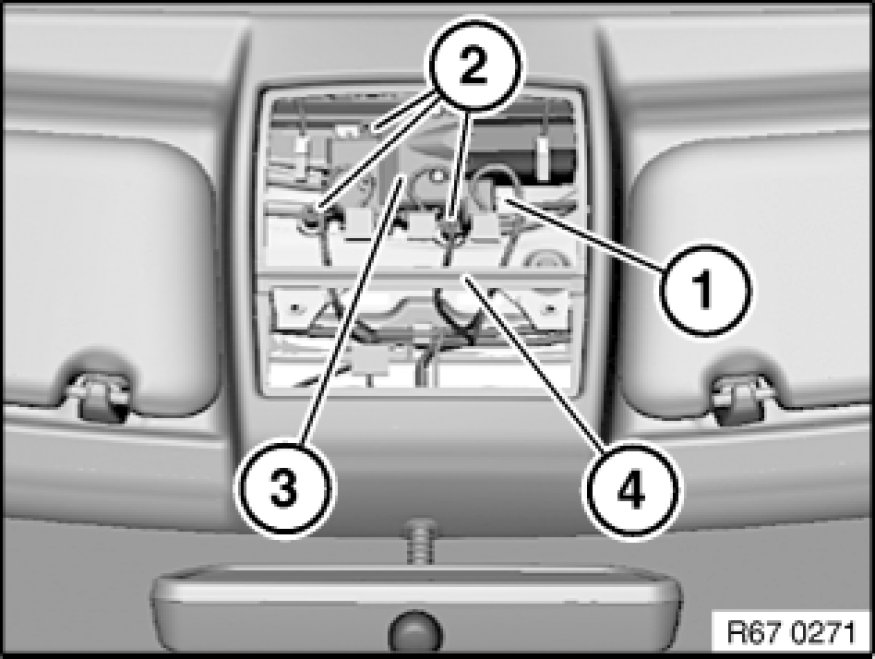

Unfasten plug connection (1) and disconnect.

Release screws (2), tightening torque 54 13 1AZ 54 13 Electric Components (of Sun Roof).

Note:
Screws (2) are microencapsulated.

Feed drive with gear for actuating slide/tilt sunroof (3) out of roofliner (4) and remove.





Installation:

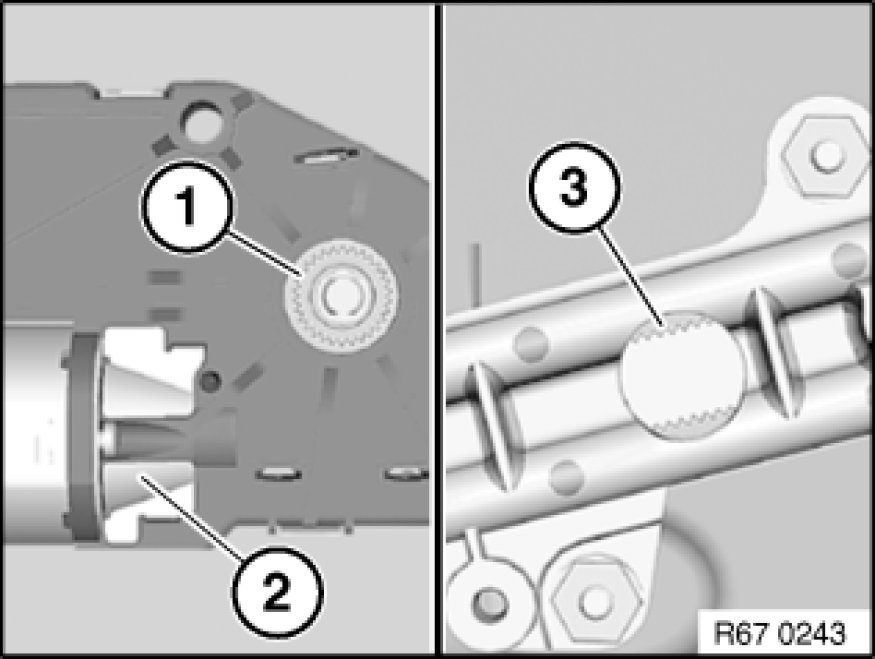

Insert gear wheel (1) of drive with gear for actuating slide/tilt sunroof (2) exactly in gear teeth (3).





Installation:
- Initialize slide/tilt sunroof Testing and Inspection.
