Front Panel for Luggage Compartment Floor

51 47 131 - Replacing front panel for luggage compartment floor





Necessary preliminary tasks:
- Fold down backrest for rear seat
Build date up to 04/05:
- Remove luggage compartment floor trim panel

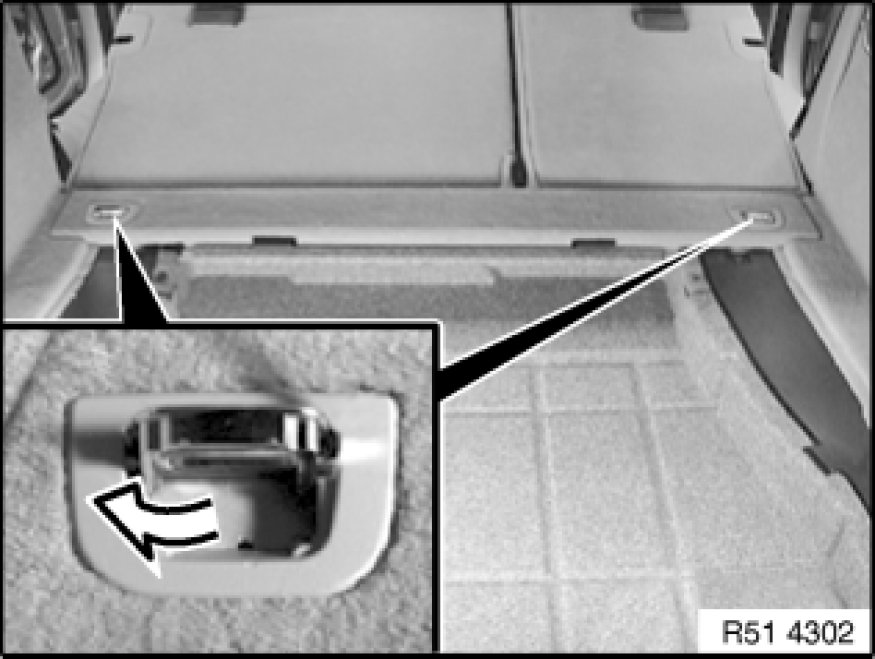

Lift lashing eyes and lever out trim.

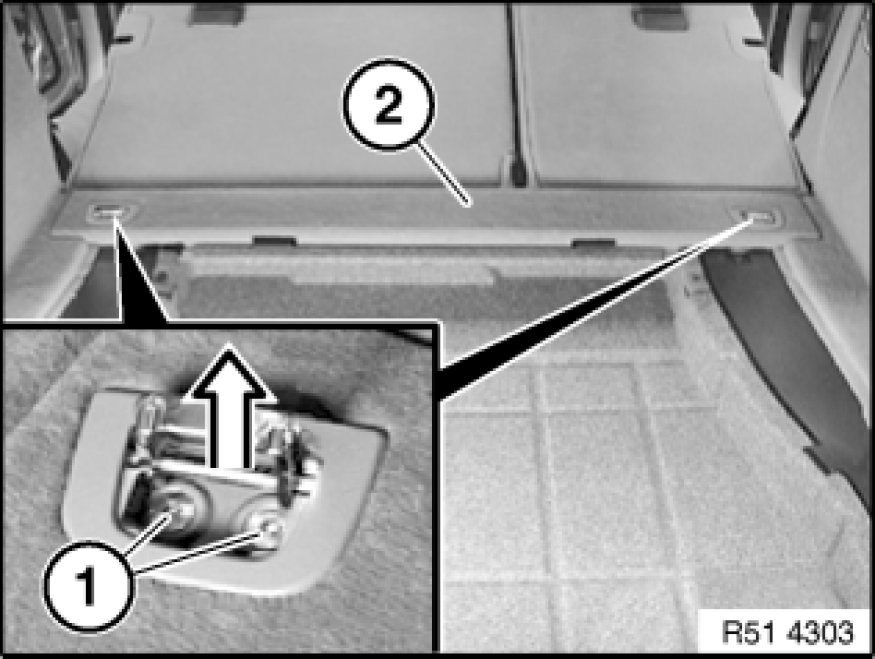

Lift lashing eyes, release screws (1) and remove lashing eyes.
Feed out panel (2) towards top.
