51 46 050 Removing and Installing/Replacing Top Trim on Tail Panel

51 46 050 - Removing and installing/replacing top trim on tail panel





Necessary preliminary tasks:
- Remove luggage compartment floor trim panel
- Remove a trim panel for rear roof pillars (D-pillar)





Lever covers (1) out of trim on tail panel (3).
Lever covers (2) out of lashing eyes.

Installation:
If necessary, replace damaged protective caps (1 and 2).

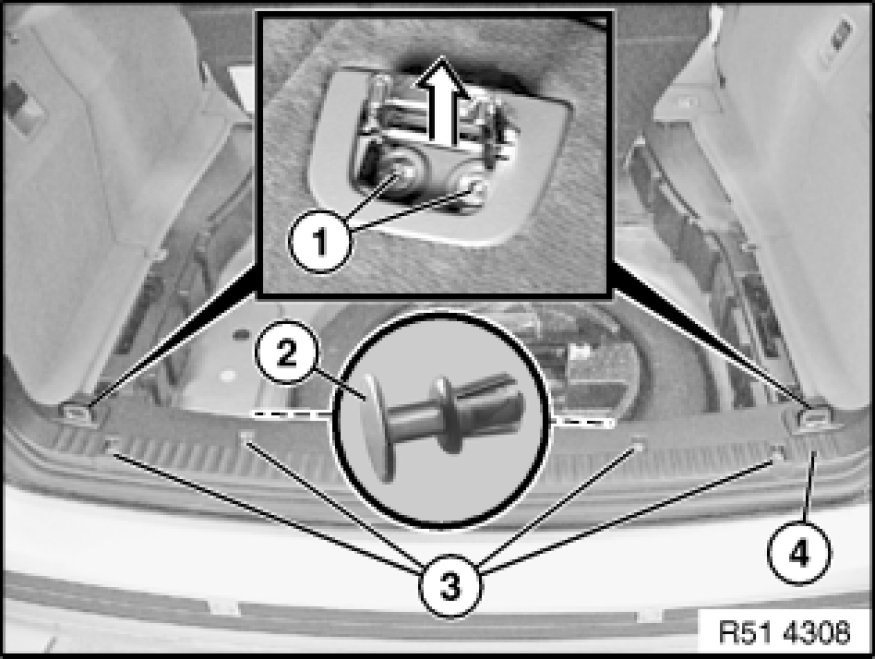

Release screws (1) from lashing eyes.
Release expander rivets (2) and screws (3) from trim on tail panel (4).
Remove trim on tail panel (4) in upwards direction.
