Trunk / Liftgate Hinge: Service and Repair

41 62 519 - Removing and installing/replacing left or right hinge for rear lid





Read contents of Body, General Service Precautions.

Necessary preliminary tasks:
- Remove rear lid Removal and Replacement

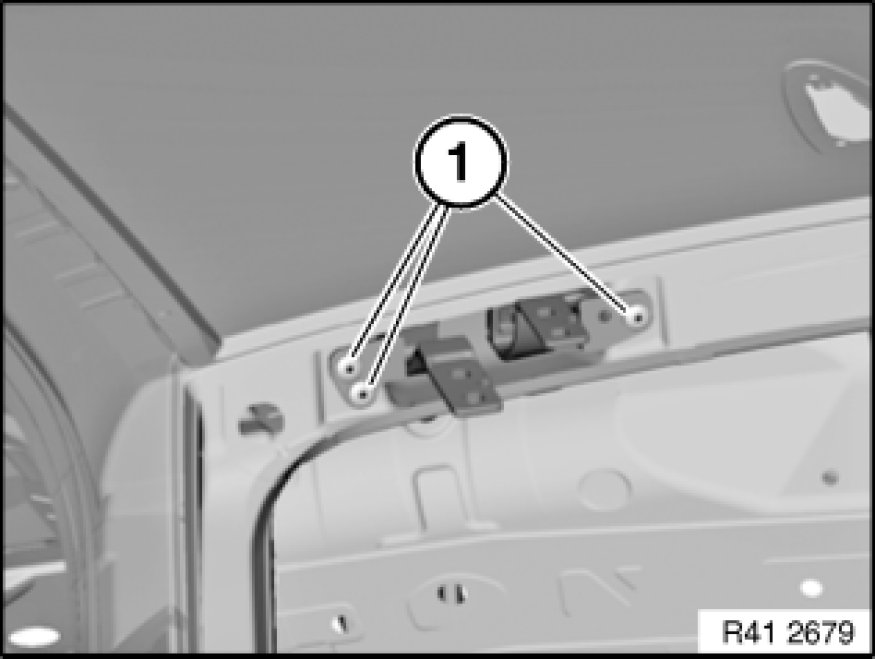

Release screw connections (1) on vehicle.
Tightening torque 41 62 3AZ [1][2]41 62 Rear Lid.
Remove hinge.

Installation:
Adjust rear lid on the basis of the E61 body gap dimensions .
