51 12 826 - Removing and installing/replacing guide for rear bumper

51 12 826 - Removing and installing/replacing guide for rear bumper





Necessary preliminary tasks:
- Remove rear bumper trim

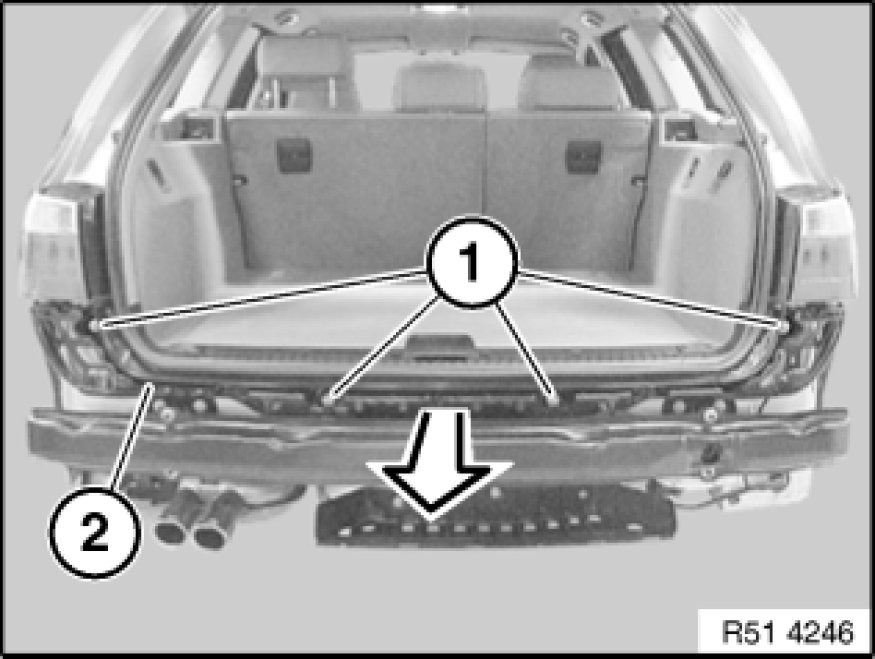

If necessary, feed cable out of guide (2).
Release nuts (1) on guide (2).
Remove guide (2) towards rear.
Tightening torque 51 12 10AZ [1][2]Rear Bumper.





Installation:

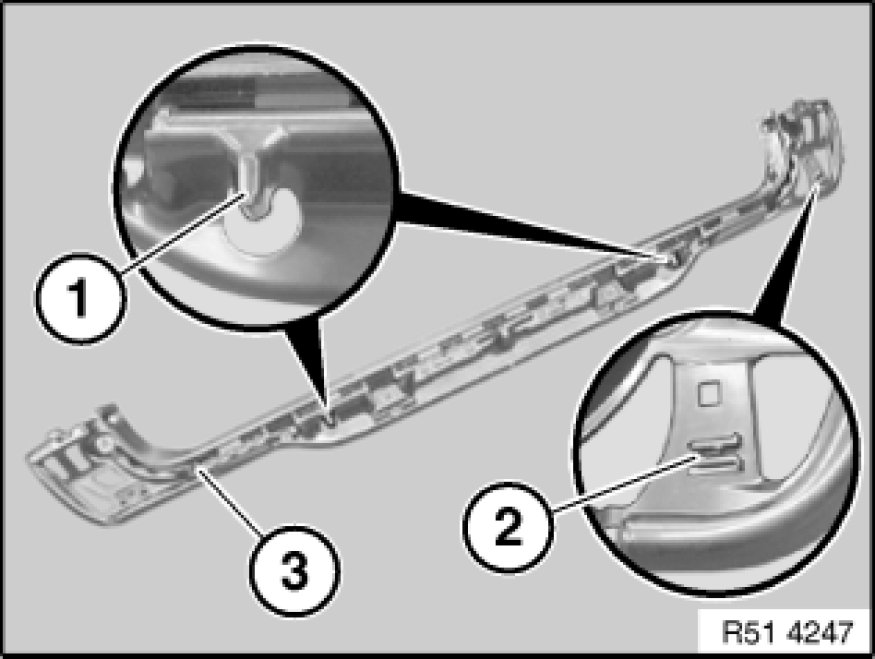

Supports (1) and plug guide (2) on guide (3) must not be damaged.

Replacement:
If necessary, remove bumper antenna Removing and Installing/Replacing Bumper Antenna for Comfort Access System for comfort access system.
