Replacing Bracket for Rear Bumper at Left or Right

51 12 801 - Replacing bracket for rear bumper at left or right





Necessary preliminary tasks:
- Remove rear bumper trim

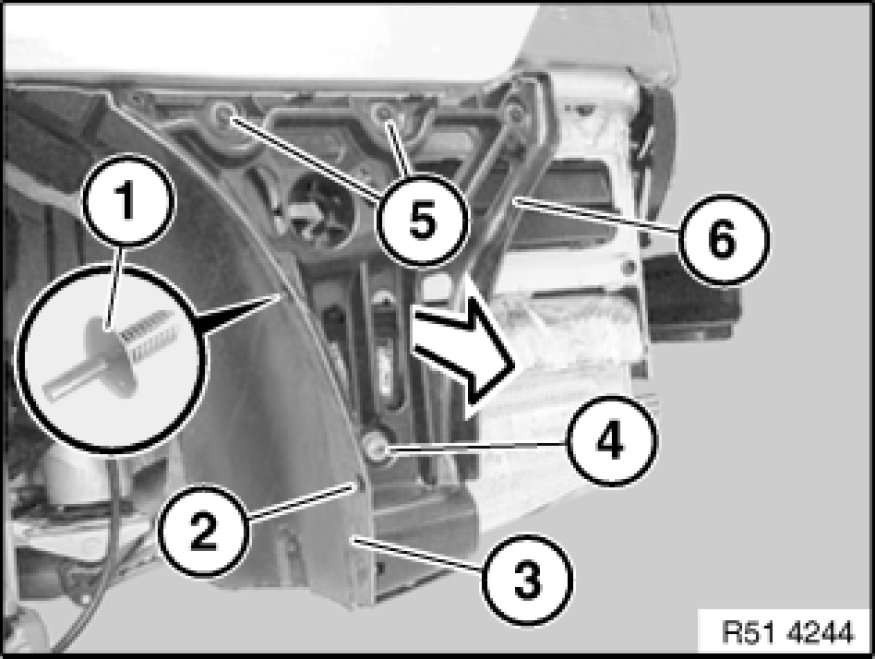

Release expander rivet (1) and screw (2) on wheel cover (3).
Release nut (4) and screws (5) on bracket (6).
Tightening torque 51 12 9AZ [1][2]Rear Bumper.
Remove bracket (6) in direction of arrow.





Installation:

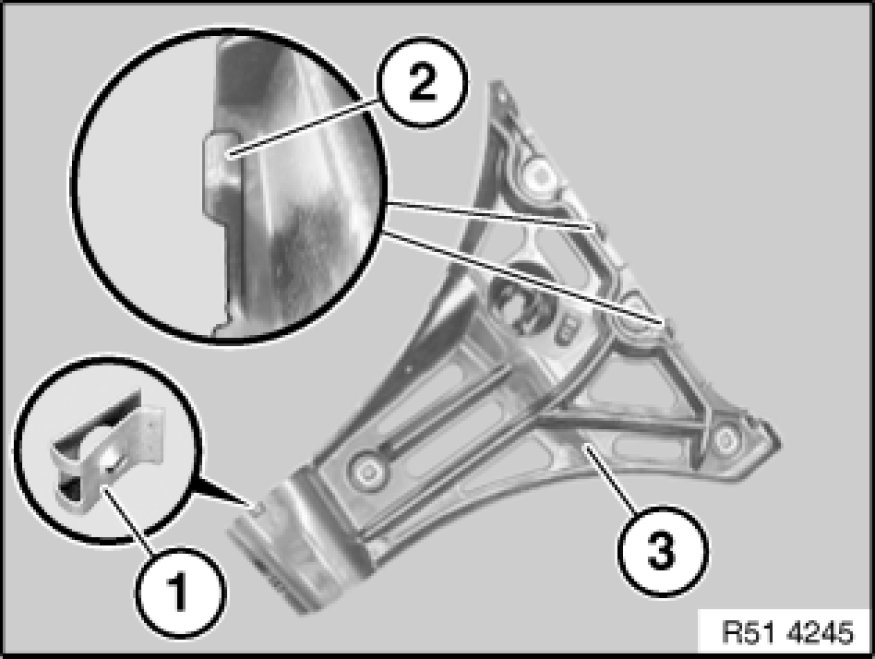

Following parts on bracket (3) must not be damaged or missing:
1 - Sheet metal nut
2 - Guides
