Removing and Installing/Replacing Rear Tweeter (In Molded Roofliner)




65 13 195 - Removing and installing/replacing rear tweeter (in molded roofliner)





Necessary preliminary tasks:
- Remove rear mid-range speaker Removing and Installing/Replacing Rear Mid-Range Speaker (In Molded Roofliner).

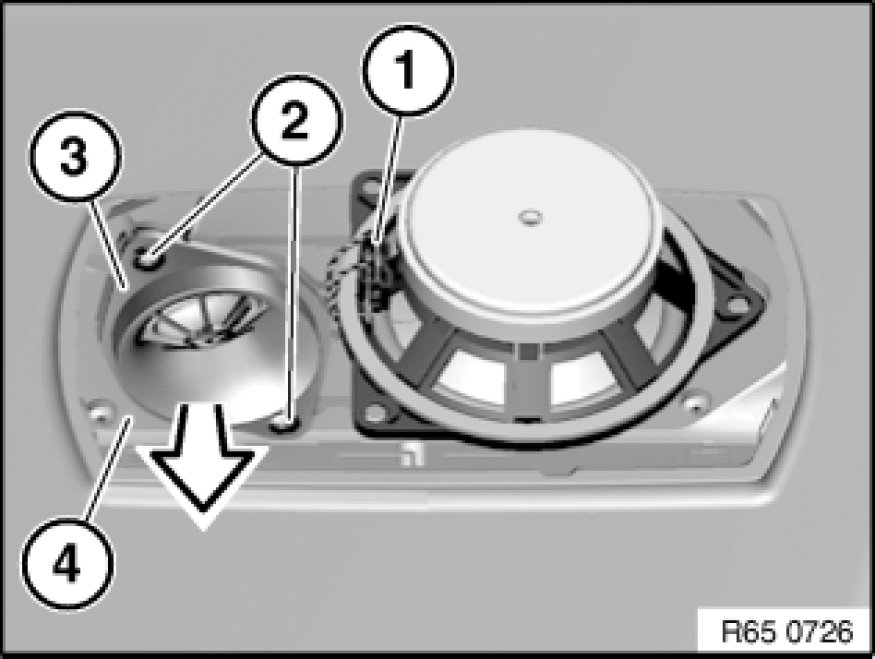

Disconnect plug connection (1).
Release screws (2).
Remove tweeter (3) from speaker mounting plate (4).
