Removing and Installing/Replacing Rear Mid-Range Speaker (In Molded Roofliner)

65 13 188 - Removing and installing/replacing rear mid-range speaker (in molded roofliner)





Special tools required:
- 00 9 341

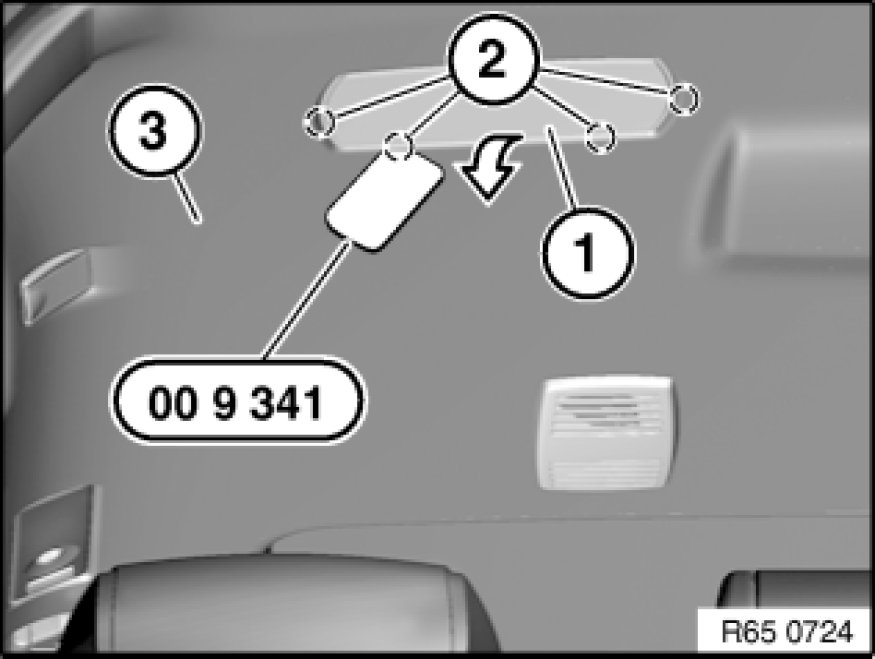

Lever out speaker cover (1) at points (2) with special tool 00 9 341.

Feed speaker cover (1) in direction of arrow out of moulded roofliner (3) and remove.





Installation:

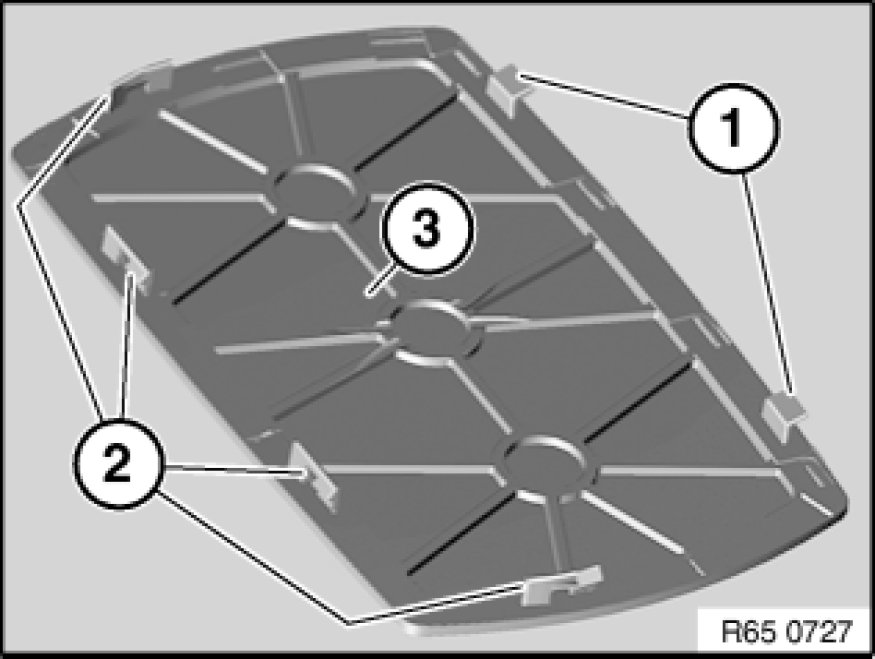

Lugs (1) and locks (2) of speaker cover (3) must not be damaged.

Make sure speaker cover (3) is completely engaged in moulded roofliner.

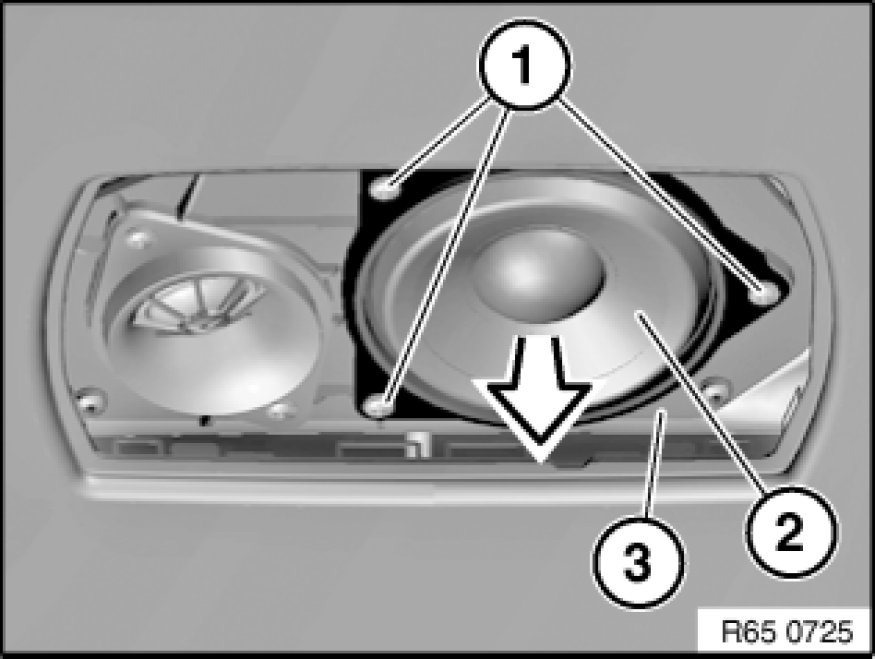

Release screws (1).

Remove mid-range speaker (2) in direction of arrow from mounting plate (3).

Disconnect associated plug connections and remove mid-range speaker (2).
