Removing and Installing/Replacing DAB Tuner

65 12 230 - Removing and installing/replacing DAB tuner





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Note:
Follow instructions for handling optical fibers 61 00 ... Notes on Handling Optical Fibers.





Necessary preliminary tasks:
- Disconnect battery negative lead Removing and Installing/Replacing Flap in Luggage Compartment Trim, Left or Right
- Remove flap in luggage compartment panel Disconnecting and Connecting Battery Negative Lead on left

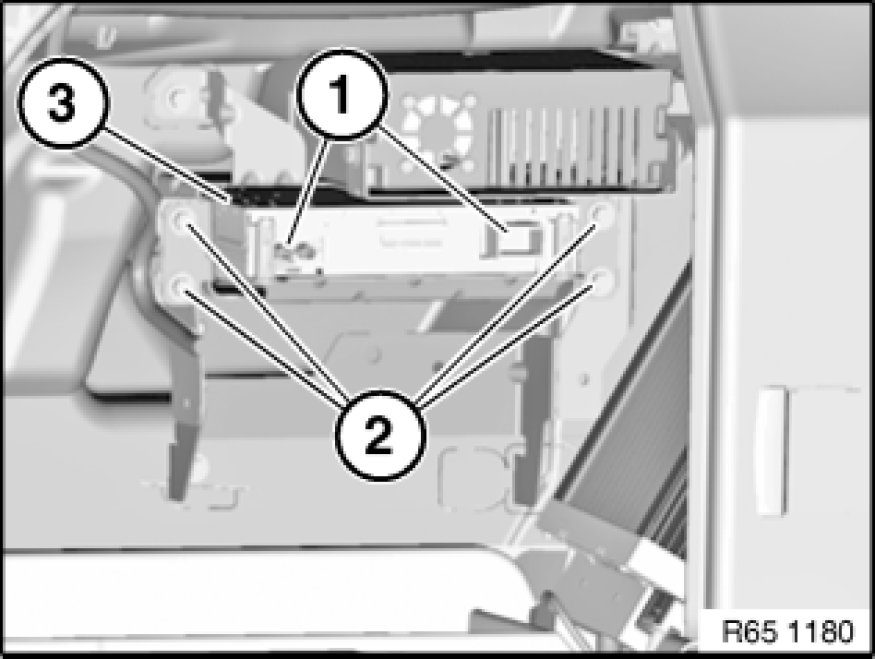

Disconnect plug connection (1).
Release screws (2).
Remove DAB tuner with bracket (3).





Replacement:

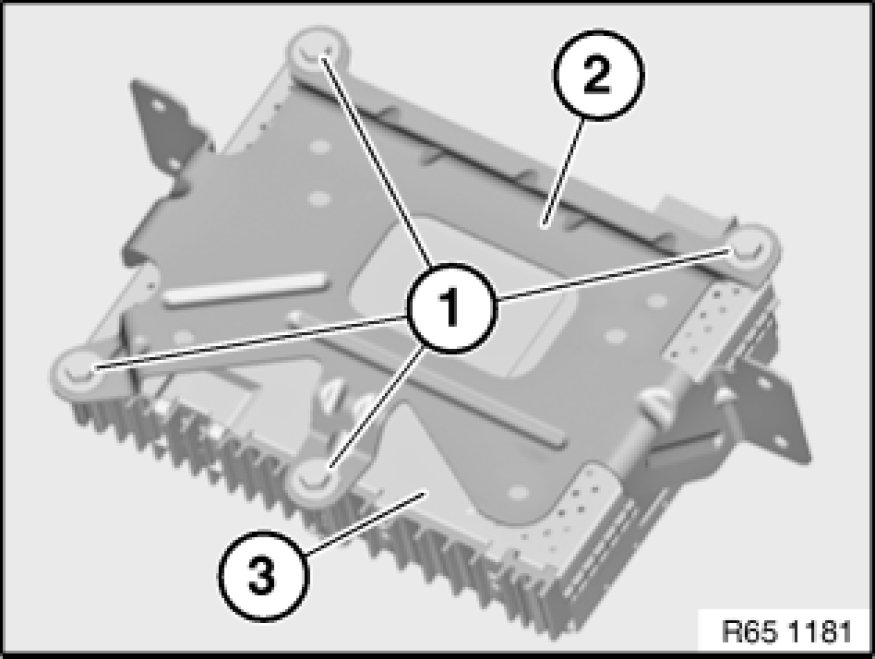

Release screws (1).
Remove bracket (2) from DAB tuner (3).
