Antenna Amplifier: Service and Repair
65 20 090 - Removing and installing/replacing antenna amplifier (diversity)
Necessary preliminary tasks:
- Remove rear spoiler 51 71 412 Removing and Installing Rear Spoiler.

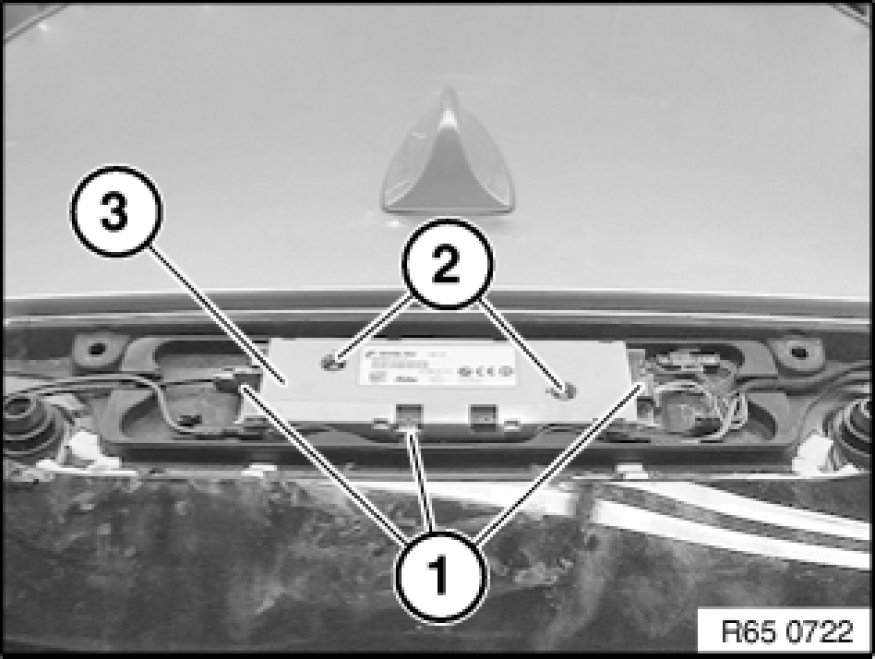

Unlock plug connections (1) and disconnect.
Release screws (2).
Lift out antenna amplifier (3).
