Antenna, Phone: Service and Repair

84 50 060 - Removing and installing/replacing Bluetooth antenna





Necessary preliminary tasks:
- Remove center console 51 16 200 Removing and Installing Storage Compartment

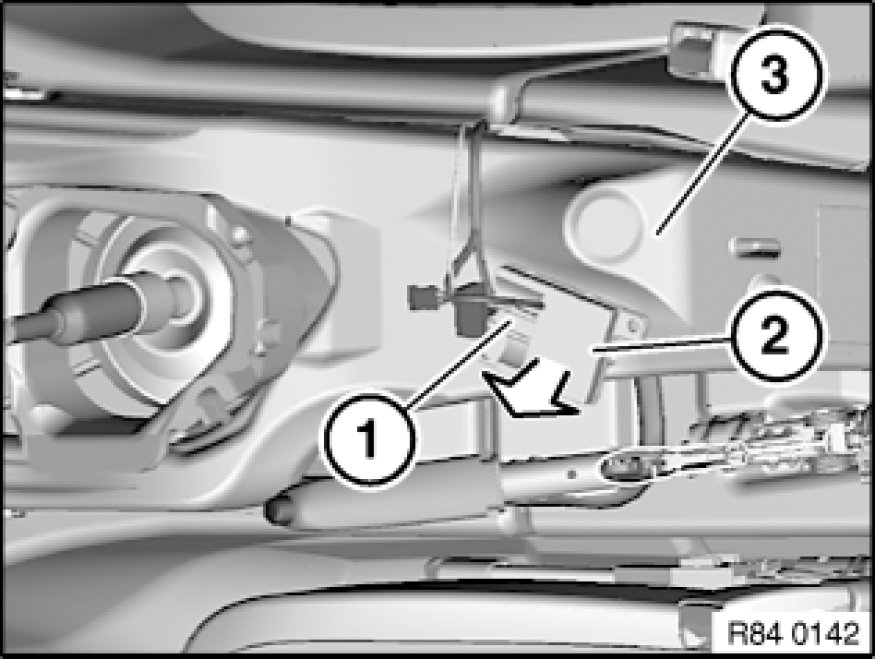

Unfasten plug connection (1) and disconnect.
Detach Bluetooth antenna (2) in direction of arrow from rear-compartment ventilation duct (3).





When replacing dual-lock tape:
- Clean bonding surfaces.
- Stick on dual-lock tape and press down firmly with fingers for at least 2 secs. (ambient temperature at least 18° C).
- Fit Bluetooth antenna on rear-compartment ventilation duct only after a minimum period 30 minutes (strain-free dwell time).
- Subjecting the bond to premature load will result in a loss of adhesion and thus a defective bond => use new dual-lock tape.





Installation:
Fit Bluetooth antenna (1) during installation so that dual-lock tapes (2) and (3) coincide exactly.
