Replacing Suction Line for Power Steering

32 41 311 - Replacing suction line for power steering (N54)





Important!
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.





Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Lower front axle support Lowering/Raising Front Axle Carrier

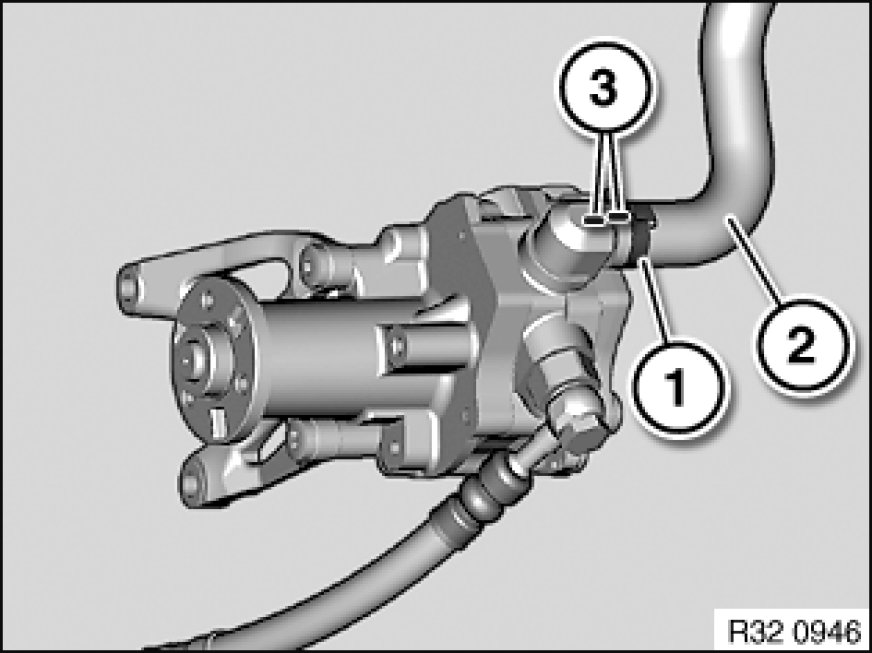

Release hose clamp (1) and detach suction line (2) from vane pump.

Installation Note:
Markings (3) on suction line and vane pump connection must match up.





Expose suction line up to connection on fluid reservoir.





Remove fluid reservoir from mounting bracket/body Removing and Installing/Replacing Fluid Reservoir for Power Steering.
Unfasten hose clip (1).
Disconnect suction line (2) from fluid reservoir.

Installation Note:
Make sure hydraulic line is laid without tension and with sufficient spacing to adjoining components.





After installation:
- Fill and bleed hydraulic system Bleeding Power Steering Unit
- Check pipe connections for leaks
