Replacing Rear Left or Right Door Window

51 34 171 - Replacing rear left or right door window





Necessary preliminary tasks:
- Open door window to 345 mm.
- Remove sound insulation in rear door Removing and Installing/Replacing Sound Insulation on Left or Right Rear Door
- Remove outer window cavity cover strip
- Remove cover on door window frame 51 34 160 Removing and Installing/Replacing Housing Cover on Inner Left or Right Door Window Frame
- Remove trim on rear door window frame
- Remove rubber guide for rear door window glass 51 34 211 Replacing Rubber Guide For Rear Left or Right Door Window





Open door window glass (1) down to distance (A)
A= - approx. 345 mm
Release screw (2).
Tightening torque 51 35 3AZ [1][2]Rear Door Window Motor.





Important!
Danger of locking in position!
Disconnect plug connection (1) at power window motor (2).

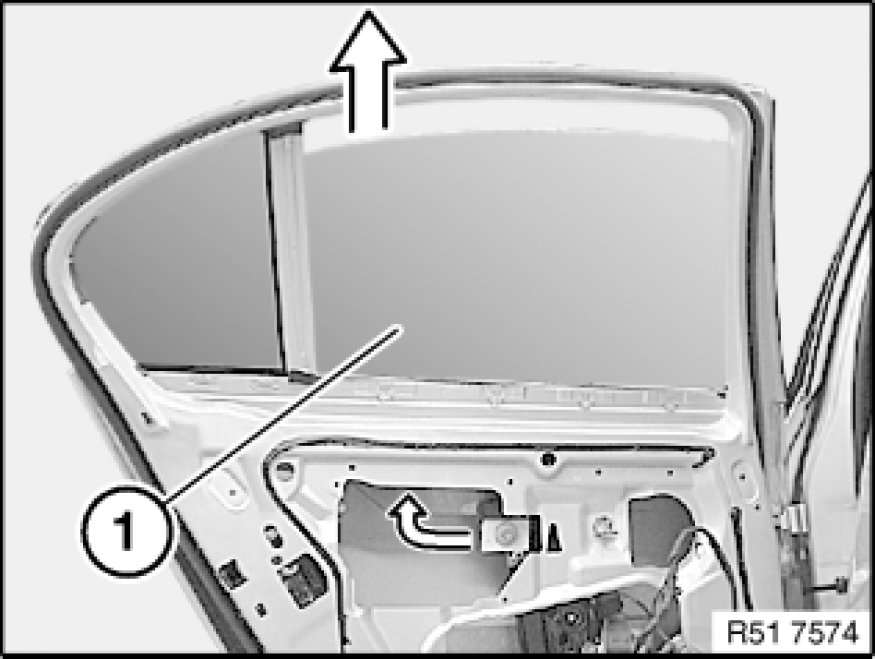

Feed out door window glass (1) towards top rear.

Installation:
Door window glass (1) does not need to be adjusted.





Note:
Carry out function check (one-touch function, anti-trapping protection and, if necessary, comfort function).
