51 31 242 Replacing Rubber Frame (Bottom) For Rear Window

51 31 242 - Replacing rubber frame (bottom) for rear window





Open rear lid.

Important!

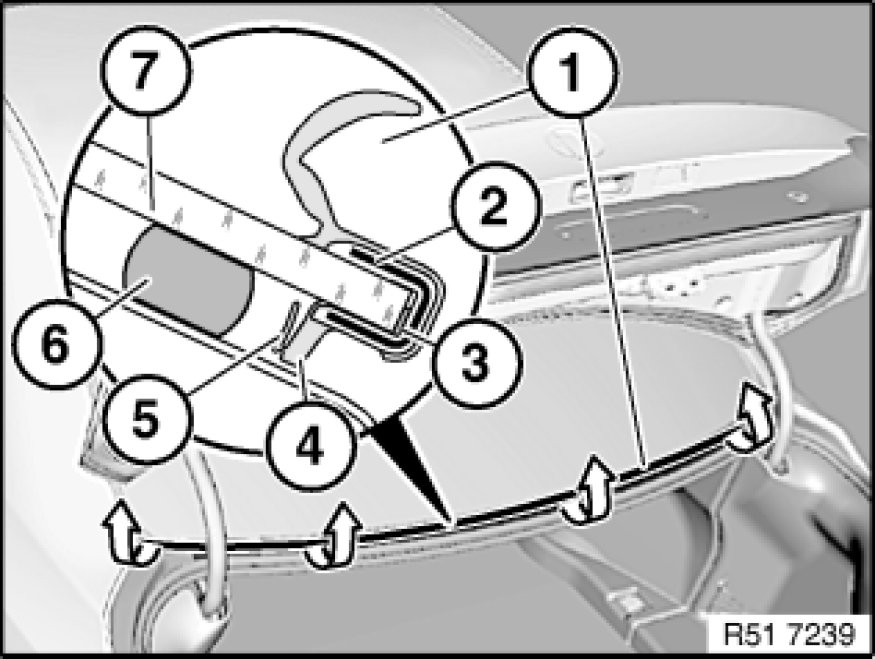

Rubber frame (1) features an aluminium section inlay (2).
Carefully unwind rubber frame (1) (rear window breakage).

Note:
Tear-off lip (5) may be stuck to adhesive (6).
When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.

3 - Pinched butyl
4 - Bridge
7 - Rear window





Installation Note:

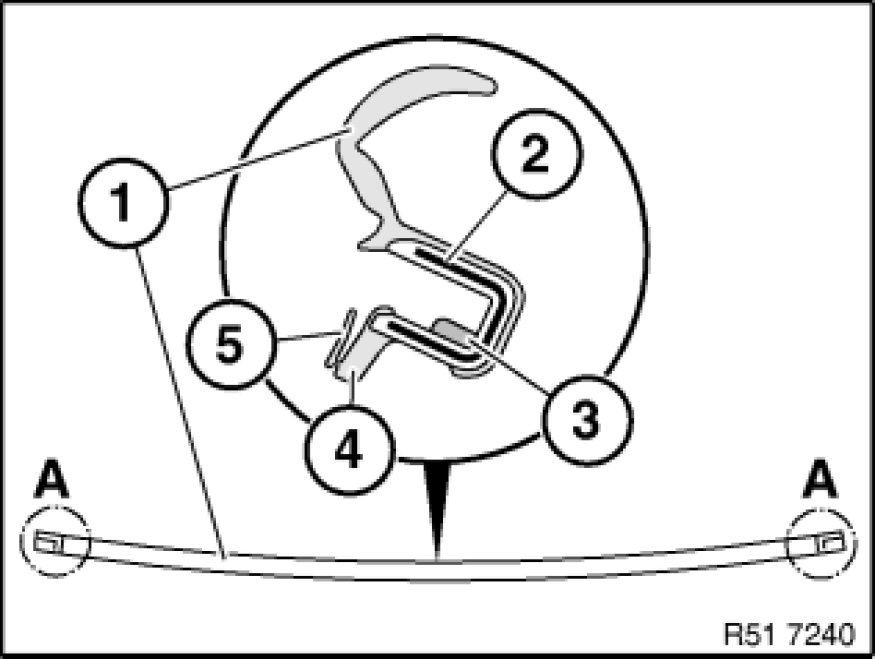

There is no tear-off lip (5) in area (A) on left/right.
Replacement of rubber frame without rear window removal:
Detach tear-off lip (3) from rubber frame (1).
If adhesive has managed to get onto bridge (4), this area must be cut out partially.
Replacement of rubber frame with removed or new rear window:
Fit rubber frame (1) with tear-off lip (5).
2 - Aluminum strip
3 - Butyl
