Home >> BMW >> 2008 >> 528xi AWD (E60) L6-3.0L (N52K) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Locations >> Overview of Front Differential/Output Shafts

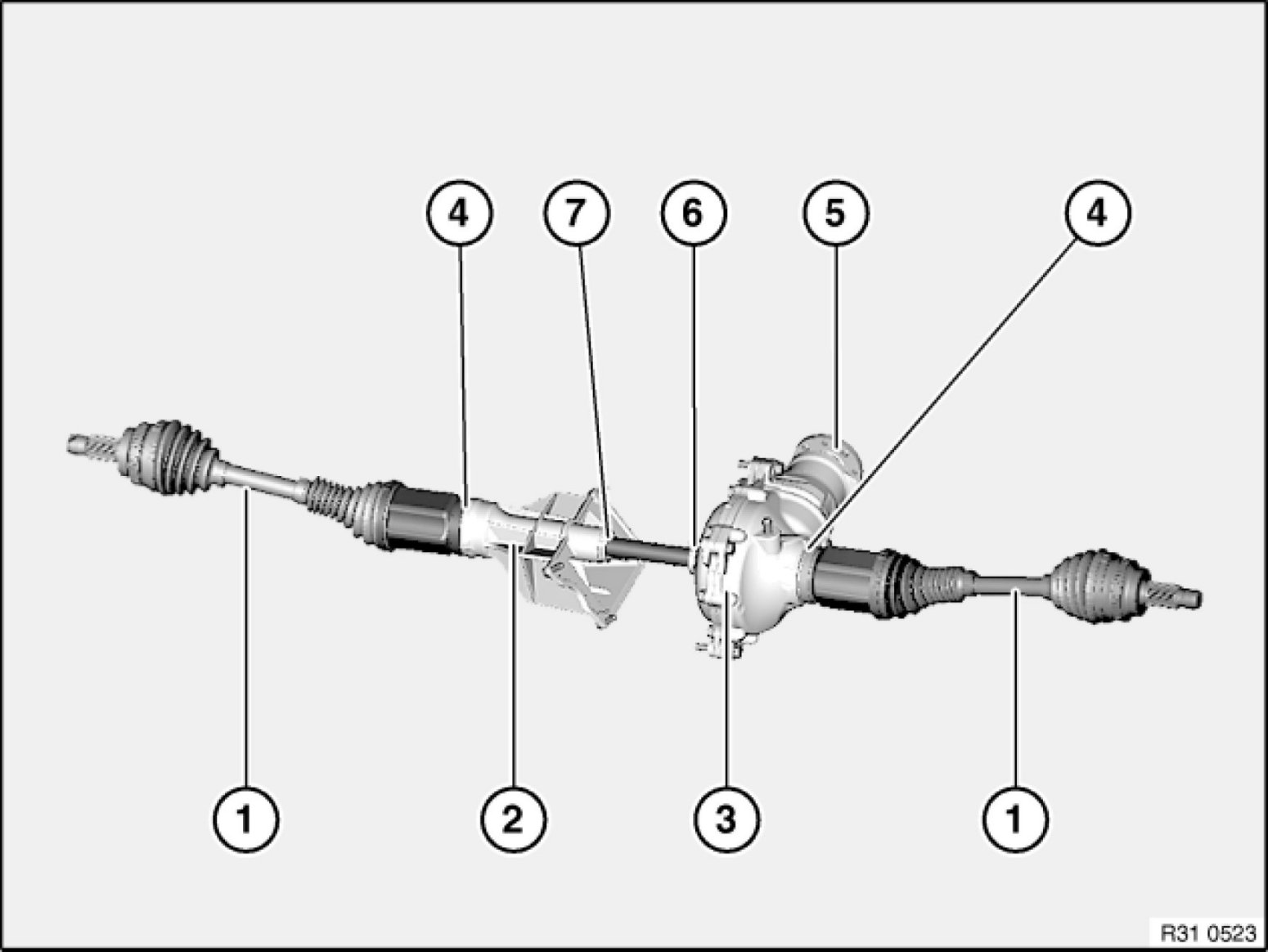

Overview of Front Differential/Output Shafts

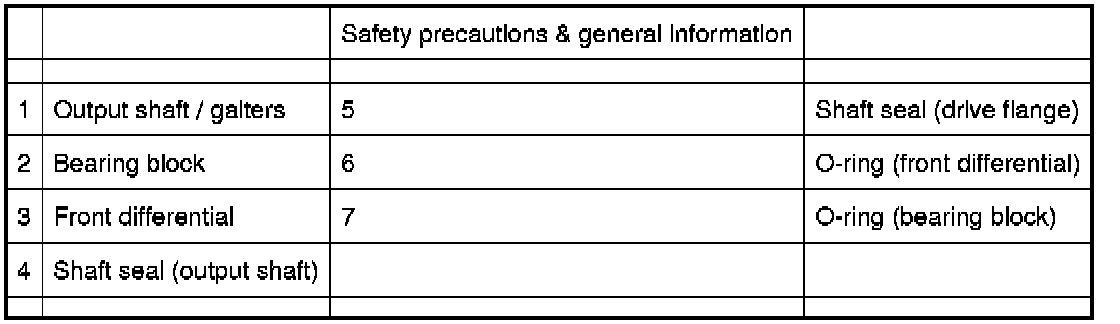

31 50 ... - Overview of front differential/output shafts
