Removing and Installing/Replacing Right Output Shaft Bearing Block

31 53 040 - Removing and installing/replacing right output shaft bearing block





Necessary preliminary tasks:
- Remove right output shaft Removing and Installing/Replacing Left or Right Output Shaft





Release grounding strap on bearing block.
Unfasten screws.

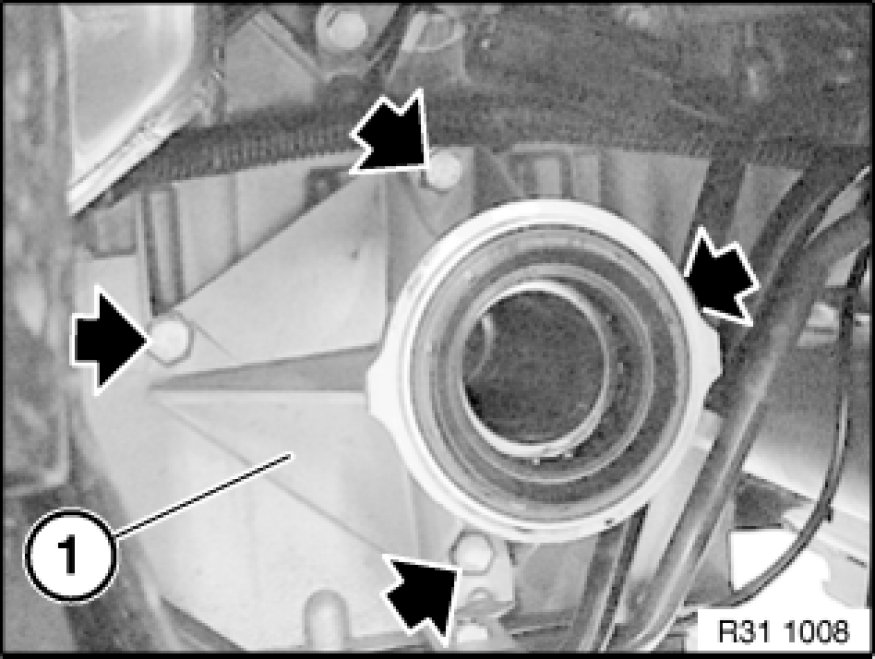

Remove bearing block (1) from oil sump.

Installation:
Replace O-ring Replacing O-ring for Bearing Block
Tightening torque 31 60 1AZ 31 60 Output Shaft (Front).
