Replacing Wiring Harness in Left or Right Rear Door

61 12 210 - Replacing wiring harness in left or right rear door





Necessary preliminary tasks:
- Close rear side window completely.
- Remove rear door trim panel .





Important!
Follow instructions for handling optical fibers 61 00 ... Notes on Handling Optical Fibers.

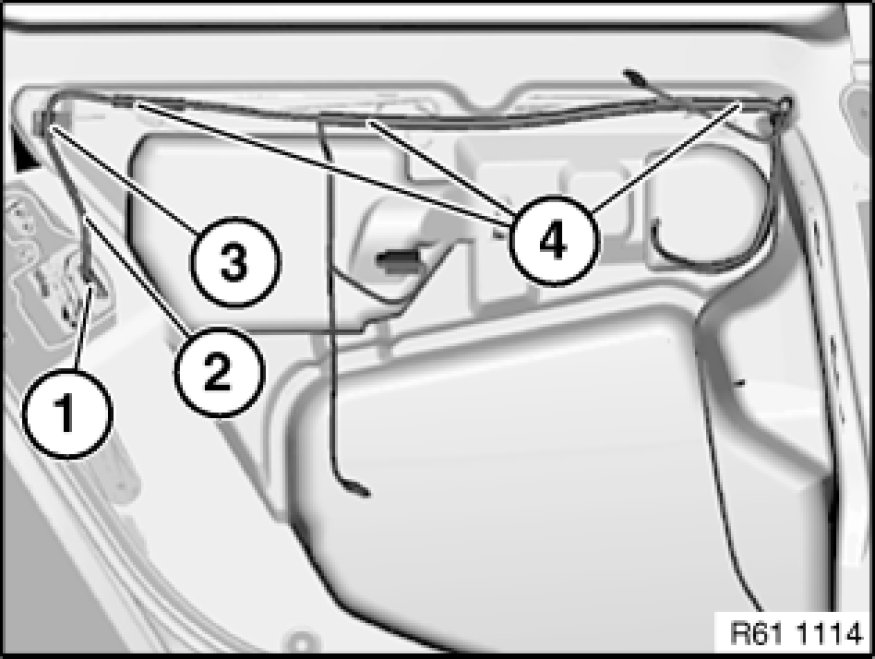

Unfasten plug connection (1) and disconnect.
Release door wiring harness (2) at point (3).
Unclip door wiring harness (2) at points (4).





Detach soundproofing Removing and Installing/Replacing Sound Insulation on Left or Right Rear Door on rear door in working area.
Unfasten plug connection (1) and disconnect.
Disconnect door wiring harness (2) at retainer (3).
Unclip door wiring harness (2) at points (4).

Installation:
Make sure door wiring harness (2) is correctly laid.





Note:
For clearer illustration, shown with front door removed.

Release screw (1), fold door wiring harness plug on B-pillar (2) downwards slightly and remove.

Unlock plug connection behind and disconnect.
Pull rubber grommet (3) in direction of arrow out of rear door (4).
Feed out door wiring harness towards front to B-pillar and remove.
