Replacing Wiring Harness In Left or Right Rear Door (Long Version)

61 12 210 - Replacing wiring harness in left or right rear door (long version)





Necessary preliminary tasks:
- Close rear side window completely
- Disconnect battery negative lead Disconnecting and Connecting Battery Negative Lead
- Remove rear door trim panel Removing and Installing Rear Left or Right Door Trim Panel (Long Version or From 03/07)
- Remove sound insulation in rear door Removing and Installing/Replacing Sound Insulation on Left or Right Rear Door

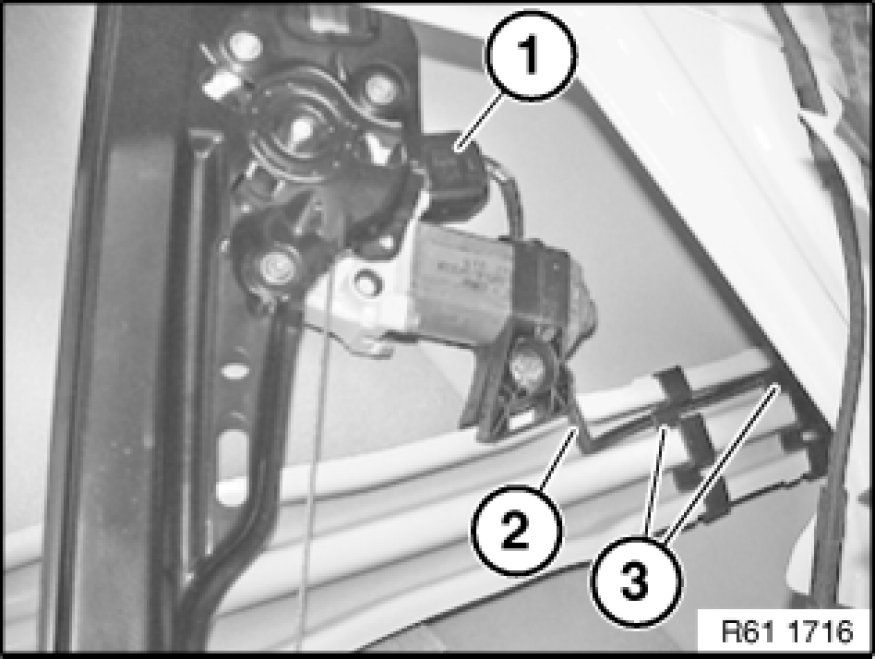

Disconnect plug connection (1).
Disconnect door wiring harness (2) at retainer (3).

Installation:
Make sure door wiring harness (2) is correctly laid.





Note:
For clearer illustration, shown with front door removed.

Release screw (1), fold door wiring harness plug on B-pillar (2) downwards slightly and remove.

Unlock plug connection behind and disconnect.
Pull rubber grommet (3) in direction of arrow out of rear door (4).
Feed out door wiring harness towards front to B-pillar and remove.
