Replacing Wiring Harness In Left or Right Front Door (Long Version)

61 12 200 - Replacing wiring harness in left or right front door (long version)





Necessary preliminary tasks:
- Close front side window completely
- Disconnect battery negative lead Disconnecting and Connecting Battery Negative Lead
- Remove front door trim panel Removing and Installing Front Left or Right Door Trim Panel (Long Version or From 03/07)
- Remove sound insulation in front door Removing and Installing/Replacing Sound Insulation in Left or Right Front Door

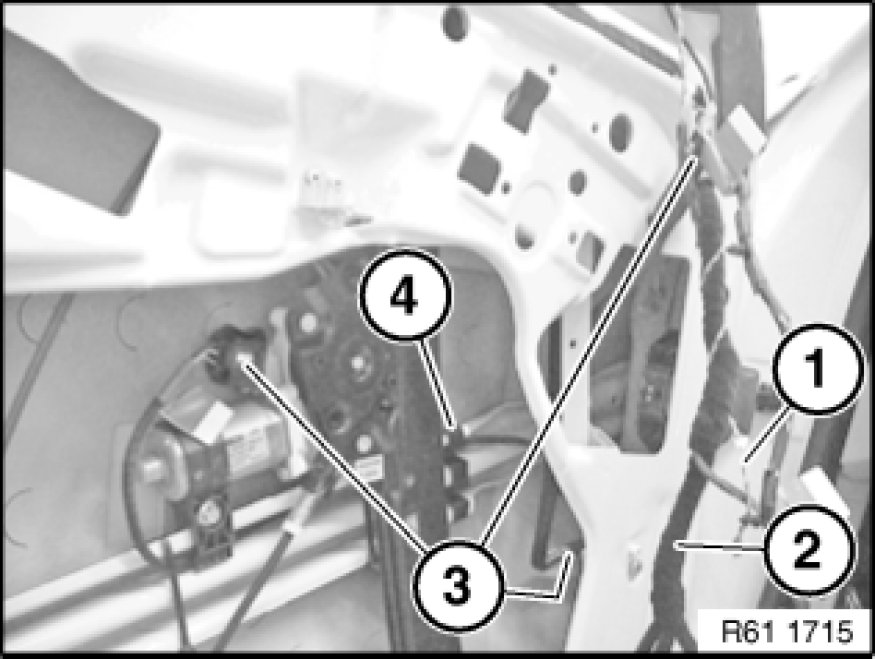

Release cable (1) from door wiring harness (2).
Disconnect plug connection (3).
Release door wiring harness (2) at point (4).

Installation:
Make sure door wiring harness (2) is correctly laid.





Note:
Front side panel shown removed for purposes of clarity.

Release screw (1), fold door wiring harness plug on A-pillar (2) downwards slightly and remove.

Unlock plug connection behind and disconnect.
Pull rubber grommet (3) in direction of arrow out of front door (4).
Feed out door wiring harness towards front to A-pillar and remove.
