Home >> BMW >> 2008 >> 528xi AWD (E60) L6-3.0L (N52K) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> Seats >> System Specifications >> Rear Seats (Through-Loading System)

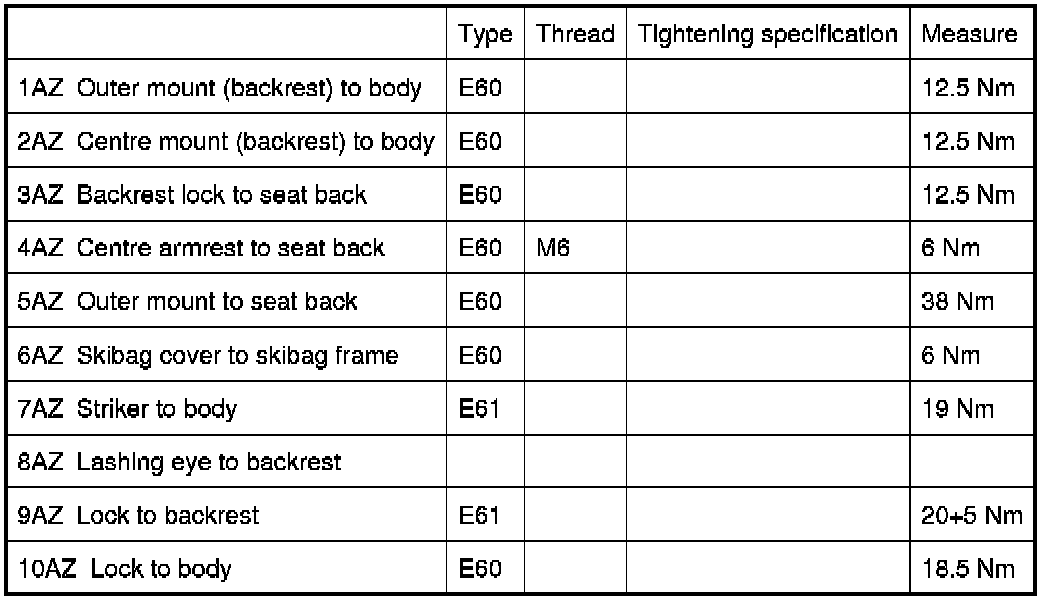

Rear Seats (Through-Loading System)




52 26 Rear Seats (through-loading system)
