Start / Stop Switch: Service and Repair

61 31 023 - Removing and installing/replacing Start/Stop switch





Special tools required:
- 00 9 341

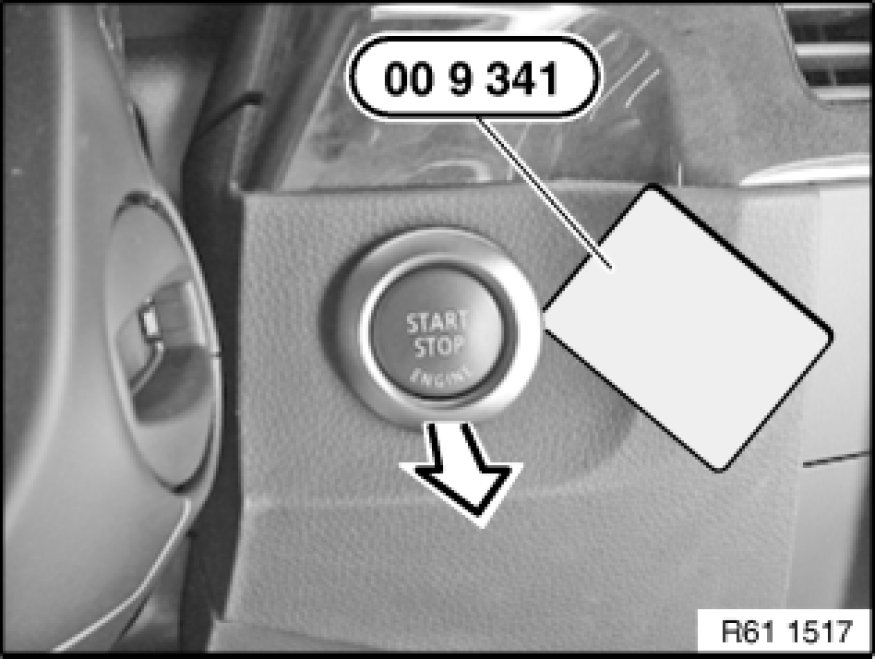

Attach special tool 00 9 341 as illustrated.

Unclip Start/Stop switch with associated ribbon cable in direction of arrow.

Important!
Carefully unlock and disconnect associated plug connection for ribbon cable.

Replace the ribbon cable if damaged.

Remove Start/Stop switch.
