Removing and Installing/Replacing Switch for Left or Right Seat Heating (Rear, Long Version)




61 31 091 - Removing and installing/replacing switch for left or right seat heating (rear, long version)





Necessary preliminary tasks:
- Remove rear insert (in storage compartment)

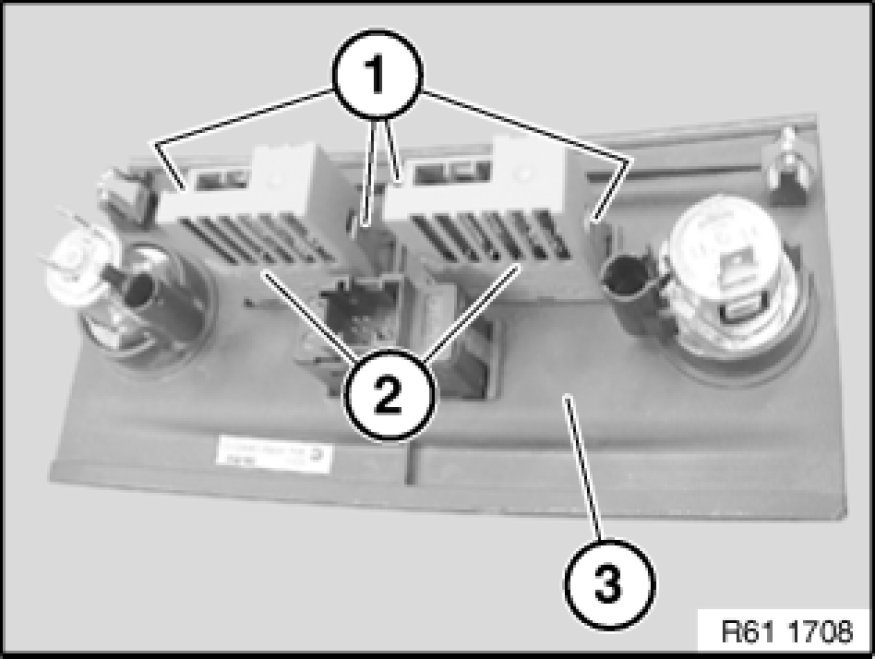

Press locks (1) together and press switches for seat heating (2) out of trim (3).
